Inspection [09/2015 - ]: Procedure

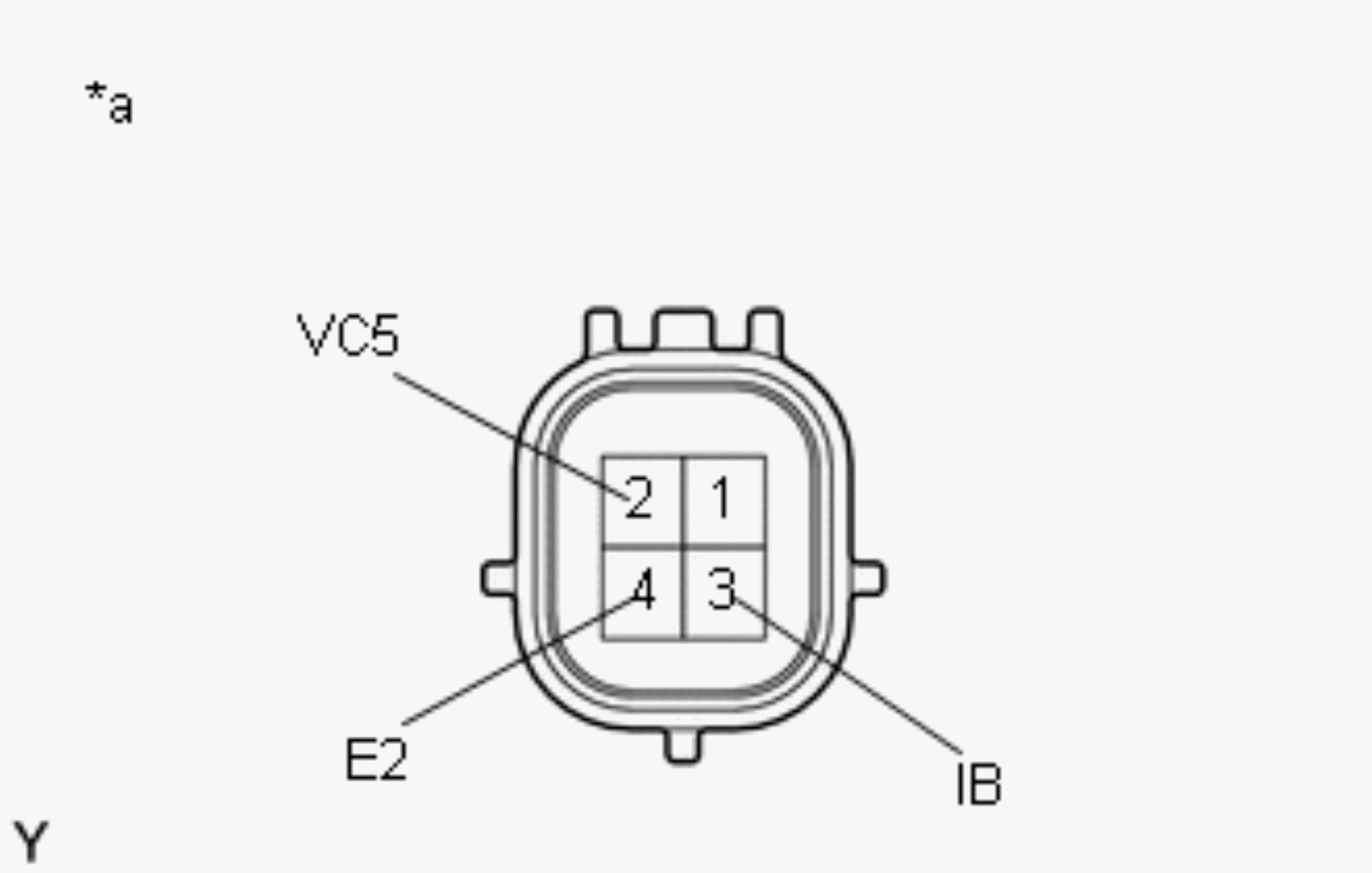

- INSPECT GROUND WIRE (BATTERY CURRENT SENSOR)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Specified Condition Tester (+) → 2 (VC5)
Tester (-) → 4 (E2)3 k to 10 kΩ Tester (+) → 2 (VC5)
Tester (-) → 3 (IB)0.5 kΩ or less Tester (+) → 3 (IB)
Tester (-) → 4 (E2)3 k to 10 kΩ If the result is not as specified, replace the ground wire (battery current sensor).
TEXT IN ILLUSTRATION*a Component without harness connected

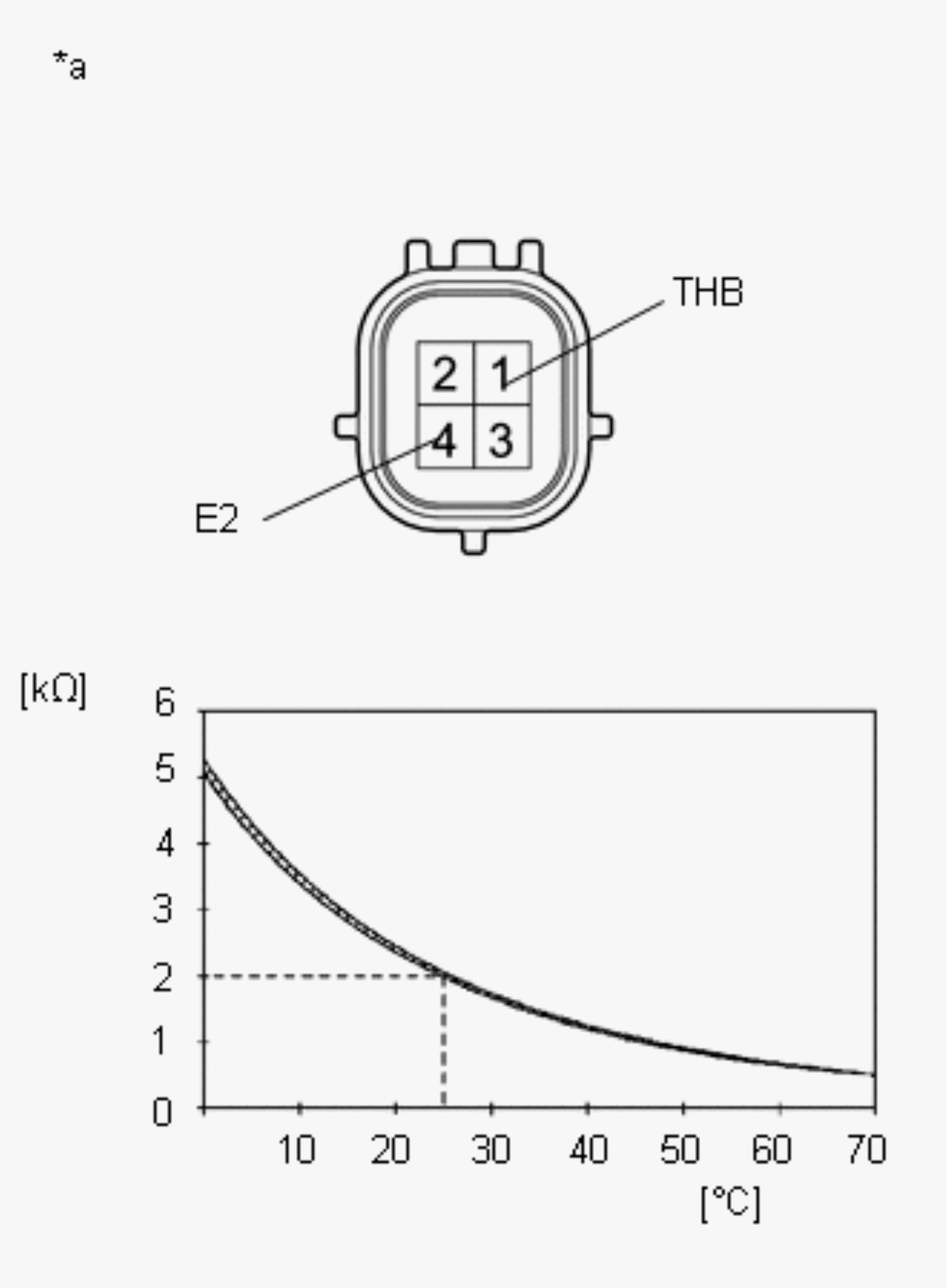

{Ground Wire (Battery Current Sensor)} - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1 (THB) - 4 (E2) 20 to 30°C (68 to 86°F) 1.5 k to 2.5 kΩ (0 to 70°C (32 to 158°F)) (0.3 k to 6.0 kΩ) NOTE:The temperature shown in the condition is for the area surrounding the sensor, not the sensor itself.
If the result is not as specified, replace the ground wire (battery current sensor).
TEXT IN ILLUSTRATION*a Component without harness connected
{Ground Wire (Battery Current Sensor)}
- Measure the resistance according to the value(s) in the table below.
