Installation [09/2015 - ]: Procedure
- INSTALL INJECTOR DRIVER NOTE:
- Be careful not to drop or strike the injector driver.
- The injector driver is grounded at the bolt and nut. To ensure that it is grounded, clean all oil and foreign matter from the installation areas of the injector driver and engine before installing the injector driver.
- Install the 2 injector drivers to the bracket with the 8 nuts.
Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
- INSTALL INJECTOR DRIVER BRACKET NOTE:
- Be careful not to drop or strike the injector driver.
- The injector driver is grounded at the bolt and nut. To ensure that it is grounded, clean all oil and foreign matter from the installation areas of the injector driver and engine before installing the injector driver.
- Temporarily install No. 1 engine cover and injector driver bracket with the 2 bolts and 2 nuts.

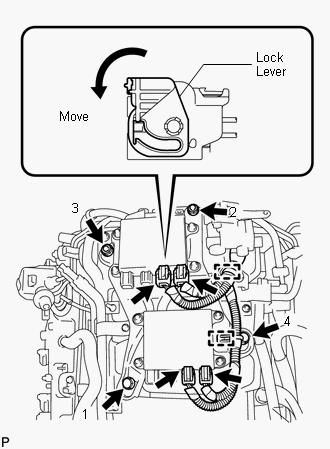

- Tighten the 2 bolts and 2 nuts in the order shown in the illustration.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
- Connect the 4 injector driver connectors to the injector driver Then move the lock lever as show in the illustration to lock the connectors.
- Connect the 2 wire harness clamps to the injector driver bracket.
- CONNECT ENGINE WIRE
(Refer to INSTALLATION [09/2015 - ] )
