Installation [09/2015 - ]: Procedure

INSTALL FUEL TANK CUSHION

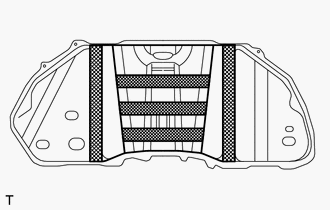

Install the 5 tank cushions and fuel tank protector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

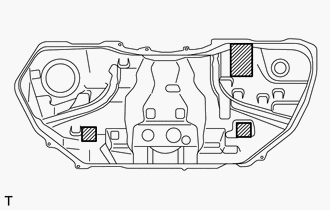

Install the 3 tank cushions.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

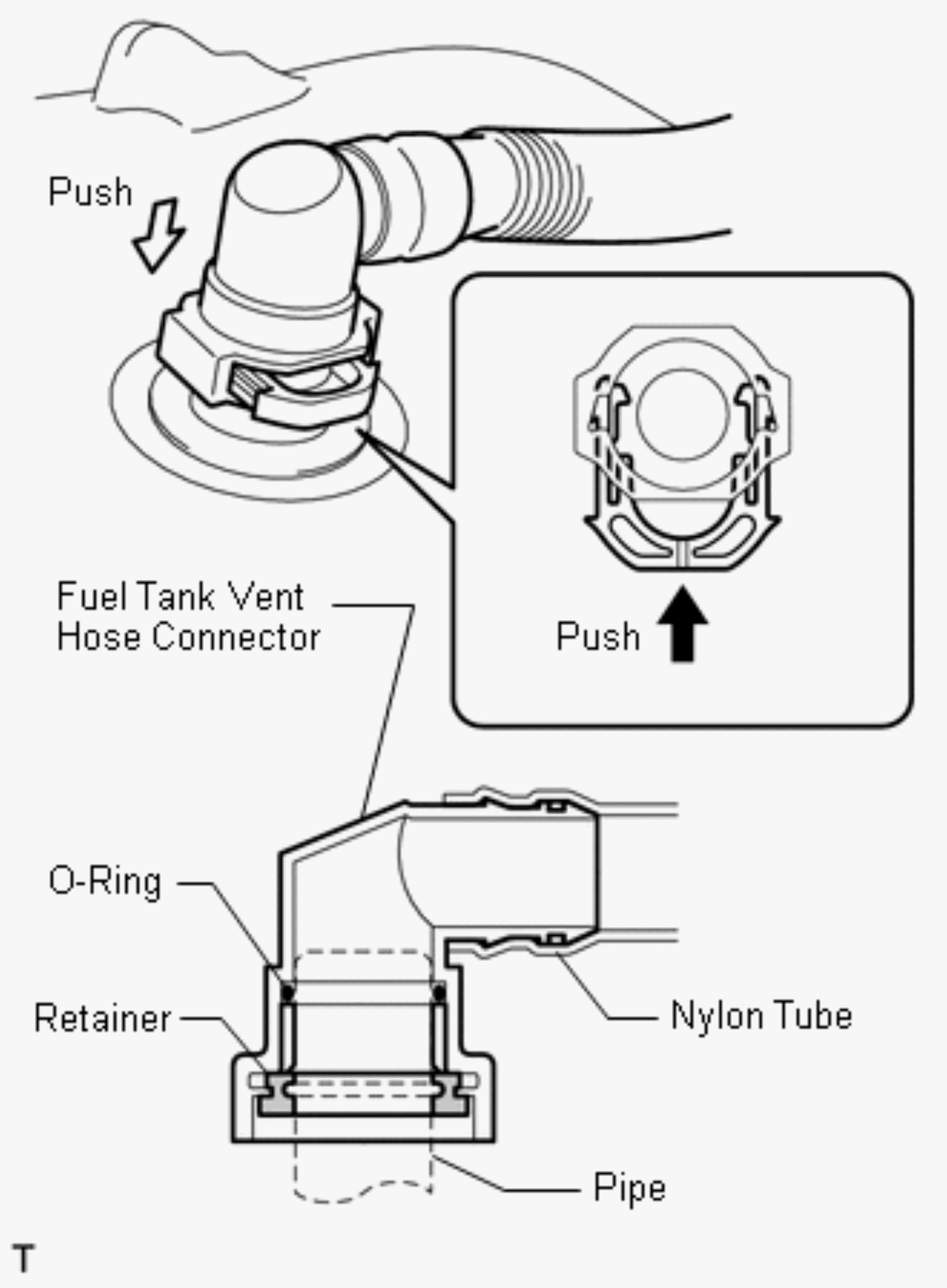

INSTALL FUEL TANK VENT HOSE SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

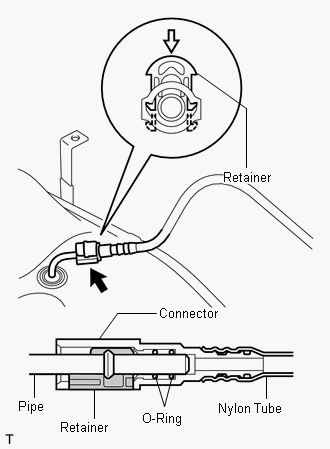

1. Install the vent hose to the fuel tank.
  1. Align the fuel tank vent hose connector with the pipe, then push in the fuel tank vent hose connector until the retainer makes a "click" sound to install the fuel tank vent hose to the fuel tank.
    NOTE:
    Check that there are no scratches or foreign objects around the connected part of the fuel tank vent hose connector and pipe before this procedure.

    After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling the fuel tank vent hose connector.
INSTALL NO. 2 FUEL TANK PROTECTOR

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the clamp to the fuel tank.
2. Install the bolt and clip and fuel tank protector to the fuel tank.

INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY

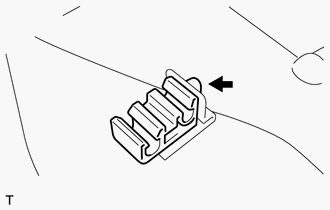

Install the fuel hose clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

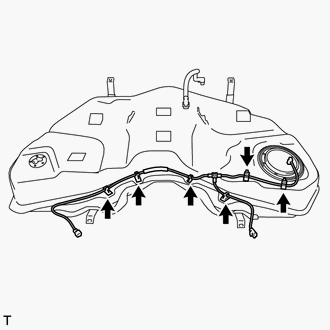

Install the fuel tank main tube to the fuel tank with the 6 clamps.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL FUEL SENDER GAUGE ASSEMBLY

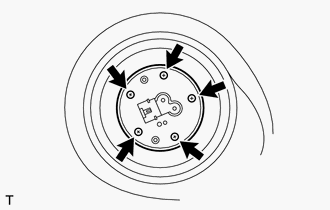

Install a new gasket and sender gauge to the fuel tank with the 5 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)

INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY

Apply a light coat of gasoline to a new gasket, and install it to the fuel tank.

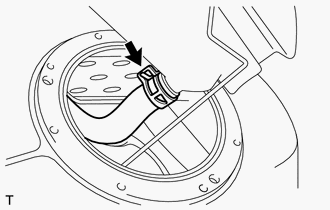

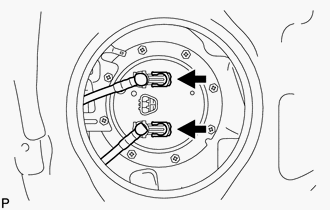

Connect the fuel hose, and install the fuel suction with pump and gauge tube.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Be careful not to bend the arm of the fuel sender gauge.
When connecting the fuel hose, do not forcibly pull the hose.

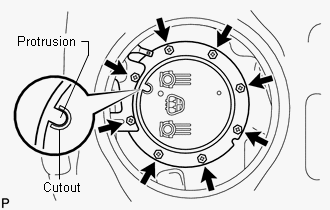

Install the lower fuel tank protector and fuel tank vent tube set plate with the 8 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

HINT:

Align the protrusion of the set plate with the cutout of the fuel suction pump and gauge.

INSTALL FUEL TANK ASSEMBLY

Set the fuel tank on a engine lifter.
Raise the engine lifter so that the fuel tank breather tube can be connected.
HINT:

Raise the engine lifter slowly.

Connect the fuel tank breather tube.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Before installing the tube connectors to the pipes, check if there is any damage or foreign matter in the connectors.
After the connection, check if the connectors and pipes are securely connected by trying to pull them apart.

HINT:

Push the parts together firmly until a "click" sound is heard.

Connect the fuel vent hose.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Before installing the tube connectors to the pipes, check if there is any damage or foreign matter in the connectors.
After the connection, check if the connectors and pipes are securely connected by trying to pull them apart.

HINT:

Push the parts together firmly until a "click" sound is heard.

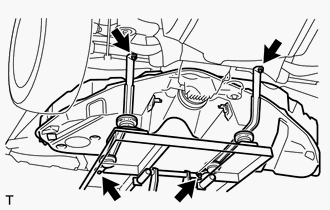

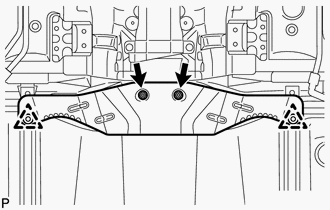

Slowly raise the engine lifter, and install the 2 fuel tank bands with the 4 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

NOTE:

Do not allow the fuel tank to contact the vehicle, especially the differential.
Make sure that the fuel tank is free from the fuel tank vent hose.

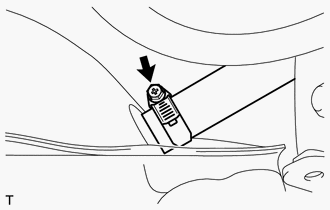

Connect the filler pipe hose to the fuel tank.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the clamp.

Connect the fuel tank main tube.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Before installing the tube connectors to the pipes, check if there is any damage or foreign matter in the connectors.
After the connection, check if the connectors and pipes are securely connected by trying to pull them apart.

HINT:

Push the parts together firmly until a "click" sound is heard.

Connect the fuel tank return vent tube.

NOTE:

Before installing the tube connectors to the pipes, check if there is any damage or foreign matter in the connectors.
After the connection, check if the connectors and pipes are securely connected by trying to pull them apart.

HINT:

Push the parts together firmly until a "click" sound is heard.

INSTALL FUEL TANK PROTECTOR SIDE BRACKET

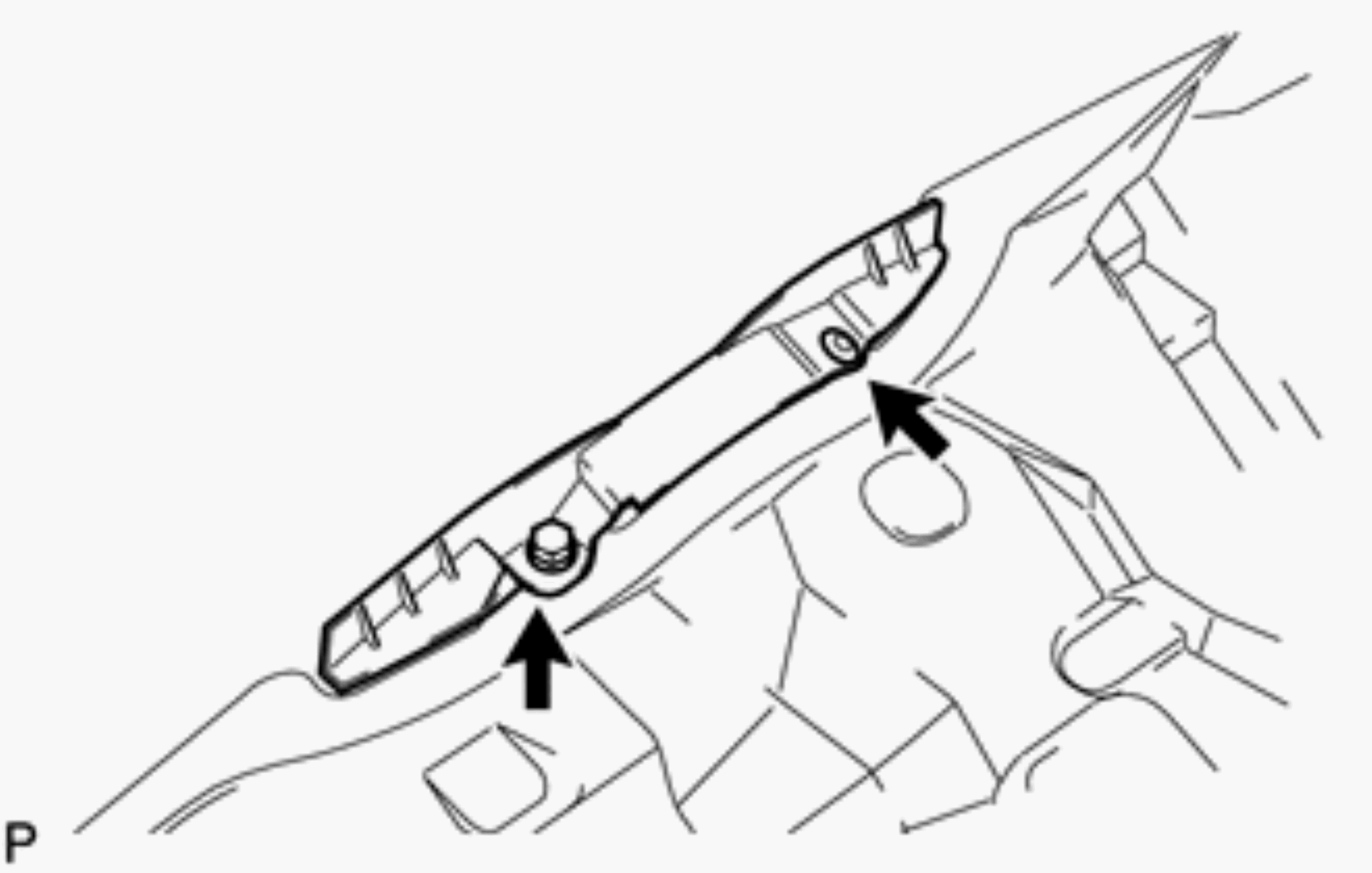

Install the protector side bracket with the 2 bolts.

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

INSTALL FUEL TANK FILLER PIPE PROTECTOR

Attach the 2 clips and protector.

Install the 2 nuts.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY
(Refer to INSTALLATION [09/2015 - ] )
INSTALL REAR FLOOR SERVICE HOLE COVER

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

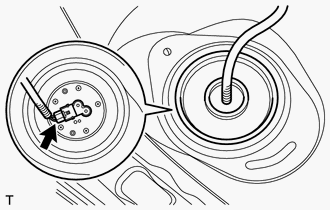

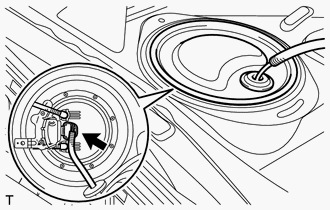

1. Connect the fuel sender gauge connector.
2. Install the service hole cover with new butyl tape.

INSTALL FUEL TANK MAIN AND RETURN TUBE

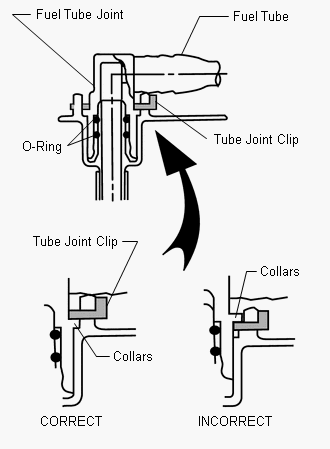

Install the fuel tank main tube and fuel tank return vent tube with the 2 tube joint clips.

NOTE:

Check that there are no scratches or foreign objects on the connecting parts.
Check that the fuel tube joint is inserted securely.
Check that the tube joint clips are on the collars of the fuel tube joints.
After installing the tube joint clips, check that the fuel tube joints have not been pulled off.

INSTALL REAR FLOOR NO. 2 SERVICE HOLE COVER

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect the connector.
2. Install the service hole cover with new butyl tape.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
INSTALL COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 15
INSPECT FOR FUEL LEAK
Refer to PROCEDURE - Step 1
INSTALL REAR NO. 1 AND NO. 2 SEAT ADJUSTER ASSEMBLY
- for Poser Seat:
  (Refer to INSTALLATION [09/2015 - ] )
- for Ottoman:
  (Refer to INSTALLATION [09/2015 - ] )
INSTALL REAR SEAT CUSHION ASSEMBLY (for Fixed Type)
(Refer to INSTALLATION [09/2015 - ] )
