Installation [09/2015 - ]: Procedure
- INSTALL SPEED SENSOR FRONT RH

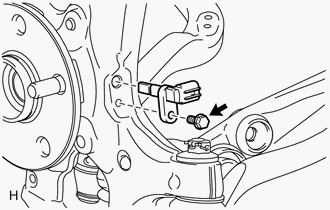

- Install the sensor with the bolt.
Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
NOTE:- The speed sensor is easily damaged.
When installing the speed sensor to the axle hub, do not use excessive force to rotate and install it.
- Prevent foreign matter from attaching to the sensor tip.
- Do not drop the sensor. If the sensor has been dropped, replace the sensor with a new one.
- The speed sensor is easily damaged.
- Install the sensor with the bolt.
- INSTALL SKID CONTROL SENSOR WIRE
- Connect the connector to the front speed sensor.
- Install the sensor clamp with the bolt.
Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
NOTE:Do not twist the sensor wire when installing the clamps.

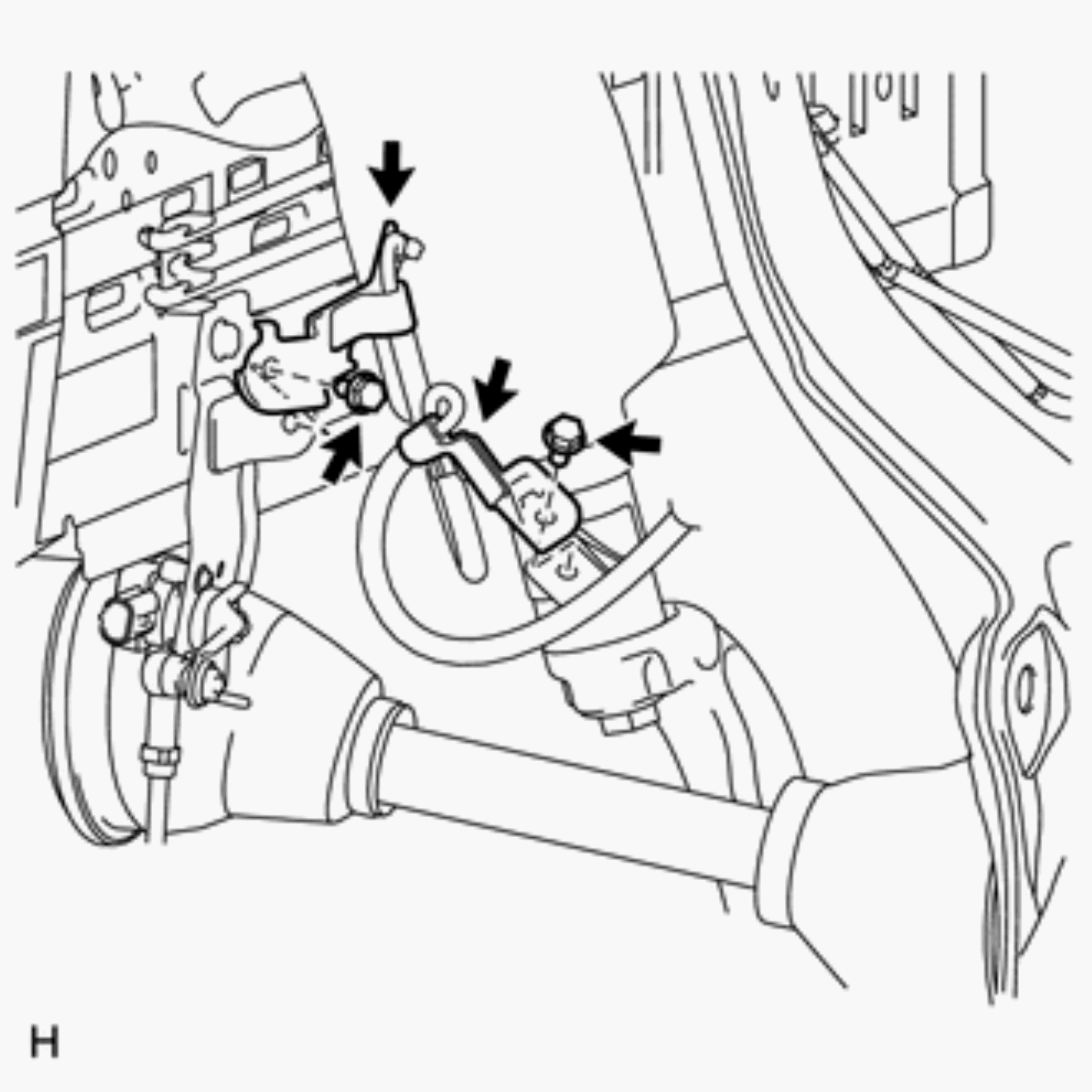

- Connect the pad wear indicator connector.
- Install the 2 sensor clamps with the 2 bolts.
Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
NOTE:Do not twist the sensor wire when installing the clamps.

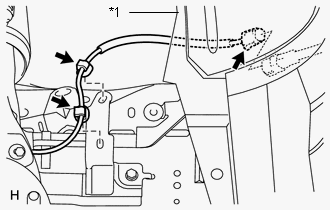

- Attach the 2 sensor clips.TEXT IN ILLUSTRATION
*1 Fender Line NOTE:Do not twist the sensor wire when installing the clips.

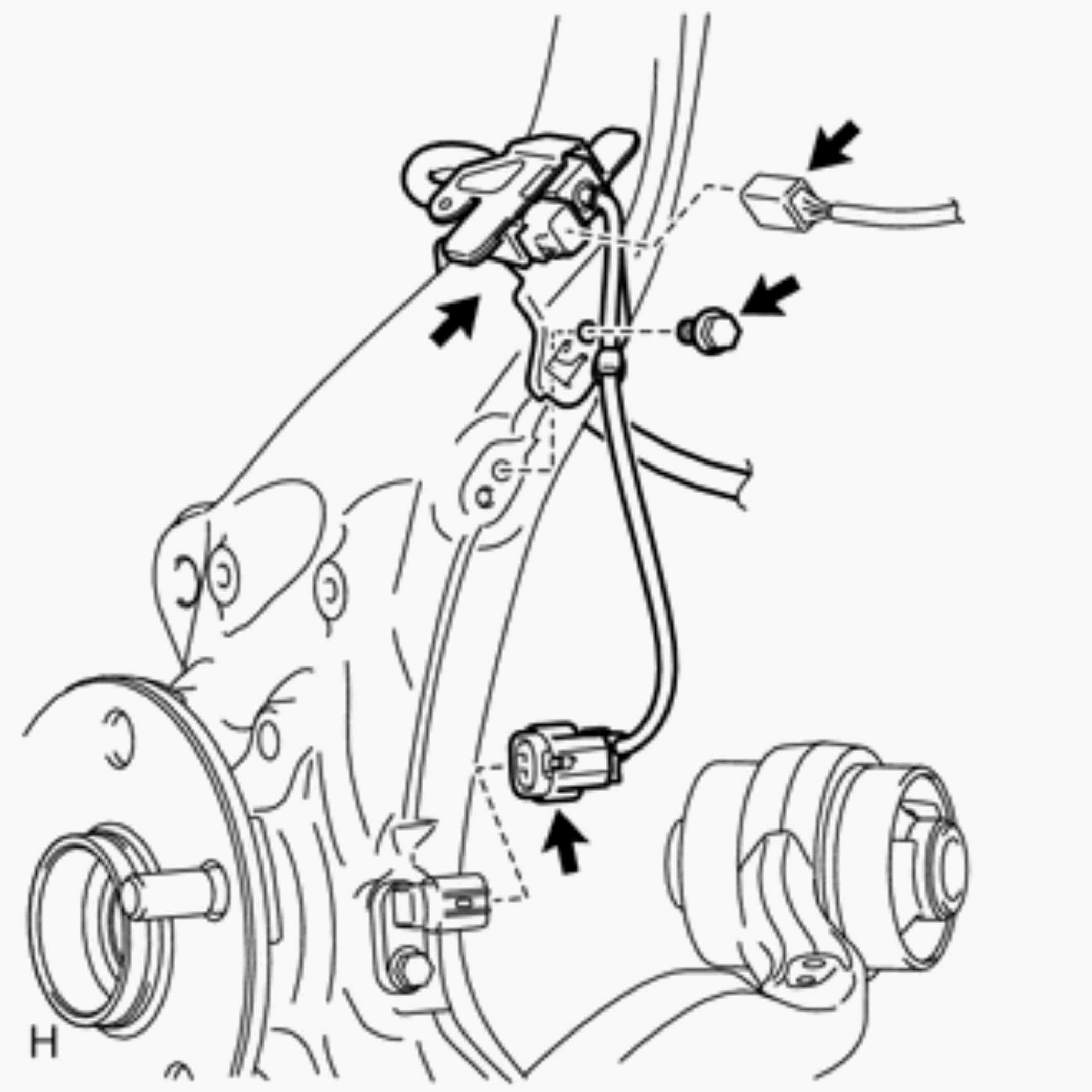

- Connect the sensor connector.
- Connect the front fender liner.
- Connect the connector to the front speed sensor.
- INSTALL FRONT WHEEL
Refer to PROCEDURE - Step 27
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
- INSTALL BATTERY SERVICE HOLE COVER LH
Refer to PROCEDURE - Step 13
- INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 14
- CHECK SPEED SENSOR SIGNAL
(Refer to TEST MODE PROCEDURE [09/2015 - ] )
