Installation [09/2015 - ]: Procedure

  1. INSTALL INJECTOR DRIVER
    NOTE:
    • Be careful not to drop or strike the injector driver.
    • The injector driver is grounded at the bolt and nut. To ensure that it is grounded, clean all oil and foreign matter from the installation areas of the injector driver and engine before installing the injector driver.
    1. Install the 2 injector drivers to the bracket with the 8 nuts.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  2. INSTALL INJECTOR DRIVER BRACKET
    1. Install the No. 1 engine cover to the intake manifold.
    2. Temporarily install the injector driver bracket with the 2 bolts and 2 nuts.

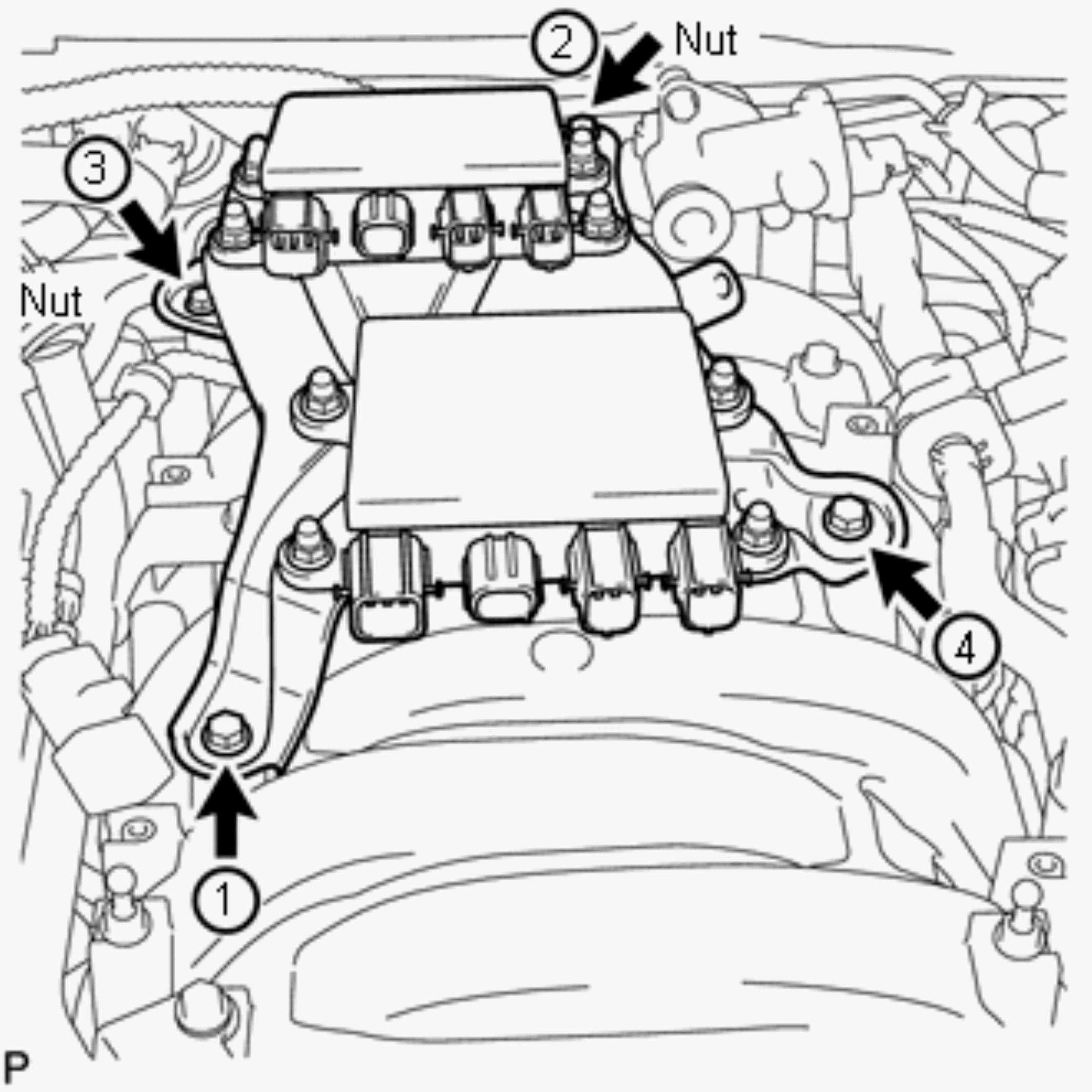

    3. Tighten the 2 bolts and 2 nuts in the order shown in the illustration.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      GTY648094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

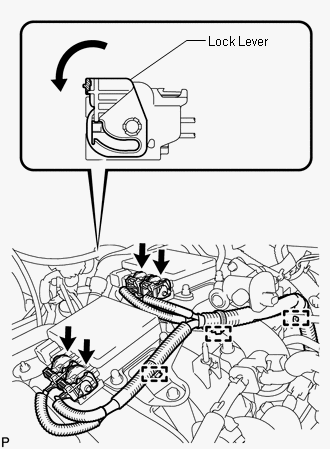

    4. Connect the 4 wire harness connectors to the injector driver. Then move the lock lever as shown in the illustration to lock the connectors.
      GTY660904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Attach the 3 wire harness clamps to the bracket.
  3. CONNECT ENGINE WIRE HARNESS

    (Refer to INSTALLATION [09/2015 - ] )
