Installation [09/2015 - ]: Procedure

  1. INSTALL ENGINE OIL LEVEL SENSOR
    1. Install a new gasket to the engine oil level sensor.

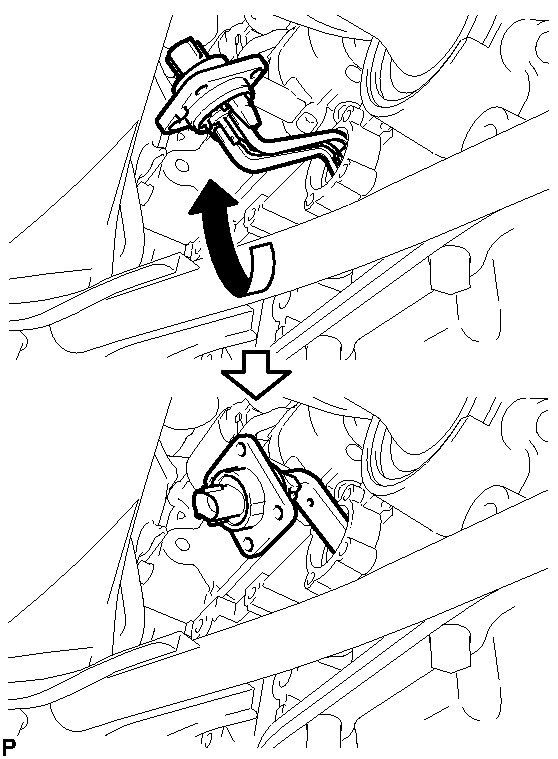

    2. Insert the engine oil level sensor into the oil pan and rotate it 180°.
      GTY120822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

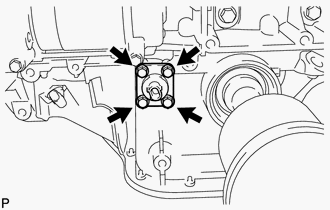

    3. Install the engine oil level sensor with the 4 bolts.
      GTY685912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    4. Connect the engine oil level sensor connector.
  2. ADD ENGINE OIL

    Refer to  5

  3. INSPECT FOR OIL LEAK

    Refer to  2

  4. CHECK ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 2

  5. INSTALL FRONT LOWER SUSPENSION MEMBER PROTECTOR

    Refer to PROCEDURE - Step 78

  6. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 6

  7. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 15

  8. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 16

  9. INSTALL NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 82

  10. INSTALL FRONT CENTER FLOOR COVER

    Refer to PROCEDURE - Step 83
