Installation [09/2015 - ]: Procedure

  1. INSTALL ECM
    1. Install the 2 ECM brackets with the 4 screws.
    2. Install the ECM with the 2 nuts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

      GTY147533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the 6 ECM connectors.
  2. CONNECT NO. 2 CONNECTOR HOLDER
    1. Attach the 2 claws to connect the No. 2 connector holder.
      GTY674301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 engine wire connectors.

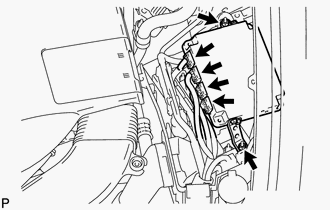

  3. INSTALL HYBRID VEHICLE CONTROL ECU
    1. Install the hybrid vehicle control ECU with the 2 nuts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

      GTY685952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 4 hybrid vehicle control ECU connectors.

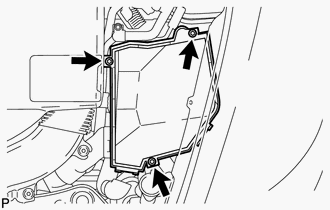

  4. INSTALL ENGINE ROOM ECU COVER
    GTY634634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the engine room ECU cover with the 3 bolts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  5. INSTALL ENGINE ROOM SIDE COVER LH

    Refer to PROCEDURE - Step 25

  6. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 91

  7. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  8. INSTALL BATTERY SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 13

  9. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14
