Removal [09/2015 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  2. REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  3. REMOVE NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 11

  4. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7

  5. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8

  6. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 7

  7. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 7

  8. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

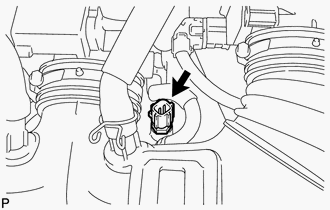

    GTY676483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the engine coolant temperature sensor connector.
    2. Remove the engine coolant temperature sensor.
    3. Remove the gasket from the engine coolant temperature sensor.
