Installation [09/2015 - ]: Procedure

1. Install the mass air flow meter sub-assembly with the 2 screws.

   Torque: 0.8 N*m (8 kgf*cm, 7 in.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • If the screw is tightened excessively, the screw hole may be damaged.
   • Make sure the O-ring is not pinched.

   HINT:

   Perform "Inspection After Repairs" after replacing the mass air flow meter sub-assembly.

   Refer to INITIALIZATION [09/2015 - ]

1. Install the mass air flow meter sub-assembly with the 2 screws.

   Torque: 0.8 N*m (8 kgf*cm, 7 in.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • If the screw is tightened excessively, the screw hole may be damaged.
   • Make sure the O-ring is not pinched.

   HINT:

   Perform "Inspection After Repairs" after replacing the mass air flow meter sub-assembly.

   Refer to INITIALIZATION [09/2015 - ]

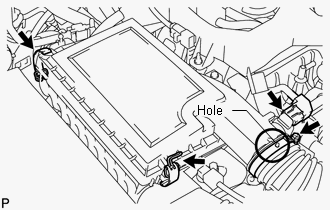

1. Install the air cleaner cap sub-assembly LH.

   for hose clamp

   Torque: 3.8 N*m (38 kgf*cm, 34 in.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Insert the protrusion of the air cleaner hose into the hole of the hose clamp.

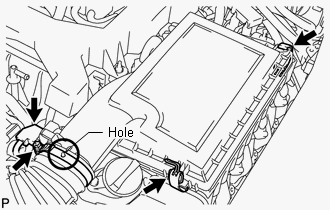

1. Install the air cleaner cap sub-assembly RH.

   for hose clamp

   Torque: 3.8 N*m (38 kgf*cm, 34 in.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Insert the protrusion of the air cleaner hose into the hole of the hose clamp.

Refer to PROCEDURE - Step 92
