Installation [09/2015 - ]: Procedure

INSTALL DRIVER MONITOR CAMERA
1. Attach the 2 claws to install the driver monitor camera with the 2 screws.
  Torque: 1.8 N*m (18 kgf*cm, 16 in.*lbf)

INSTALL DRIVER MONITOR BRACKET

Attach the guide to install the driver monitor bracket with the screw.
Torque: 1.8 N*m (18 kgf*cm, 16 in.*lbf)

Attach the claw to connect the driver monitor camera connector.

NOTE:

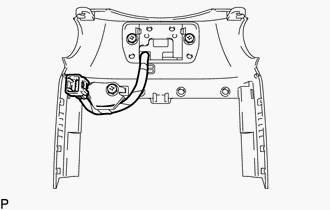

Make sure that the wire harness of the driver monitor camera is positioned as shown in the illustration.

INSTALL STEERING COLUMN COVER
1. for Upper Side:
  1. Attach the claw to install the steering column cover.
  2. Connect the driver monitor camera connector.
  3. Attach the 4 clips to install the instrument cluster finish panel sub-assembly.
2. for Lower Side:
  1. Attach the 2 claws to install the steering column cover.
  2. Install the 3 screws.
INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 28
INSTALL INSTRUMENT PANEL ORNAMENT
Refer to PROCEDURE - Step 29
INSTALL INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 30
ENABLE AUTO TILT AWAY FUNCTION
NOTE:
Restore the Autoaway/Return function setting to the previous condition by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [09/2015 - ] ).
