Components [09/2015 - ]

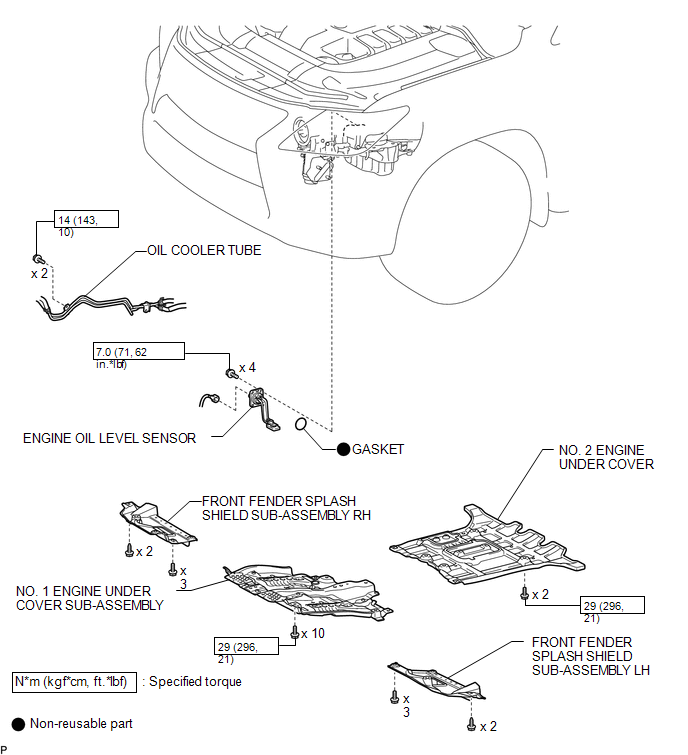

Fig 1: Engine Oil Level Sensor Replacement Components With Torque Specifications
GTY680255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
