Components [09/2015 - ]

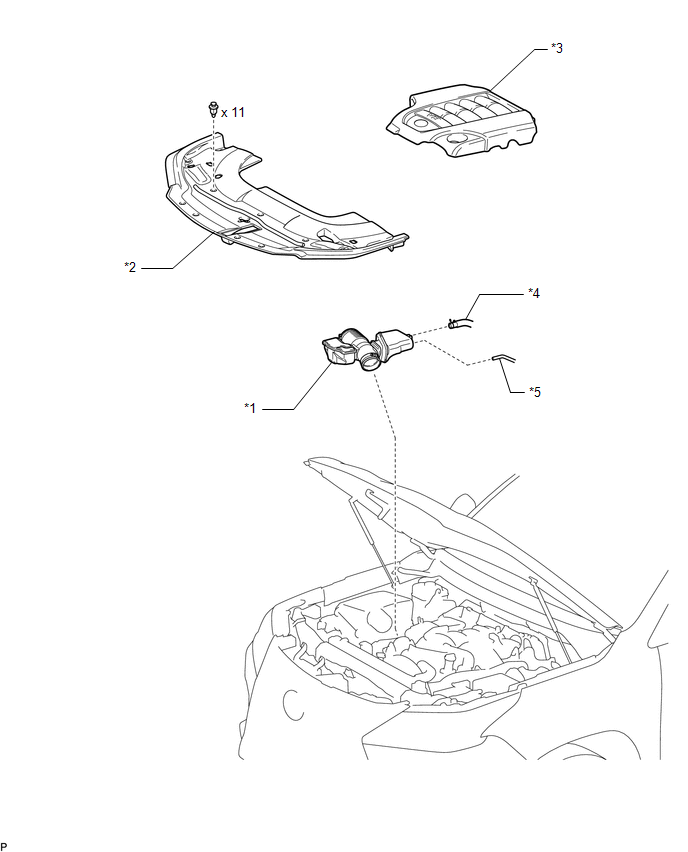

Fig 1: Fuel Injector Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
AIR CLEANER HOSE ASSEMBLY
*2
UPPER RADIATOR SUPPORT SEAL
*3
V-BANK COVER SUB-ASSEMBLY
*4
VENTILATION HOSE ASSEMBLY
*5
VACUUM HOSE
-
-

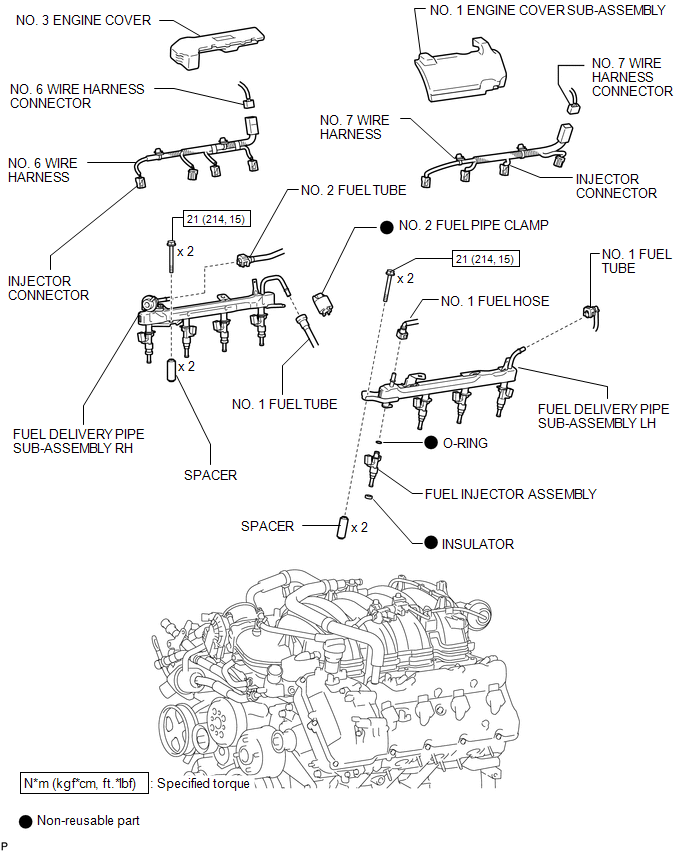

Fig 2: Fuel Injector Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
