Removal [10/2015 - ]: Procedure

  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 12

  2. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.

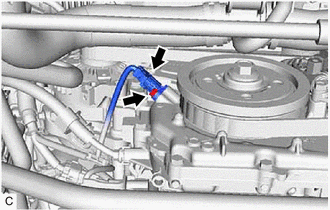

      GTY639720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.
      NOTE:

      If the crankshaft position sensor has been struck or dropped, replace it.
