Components [09/2014 - 11/2017]

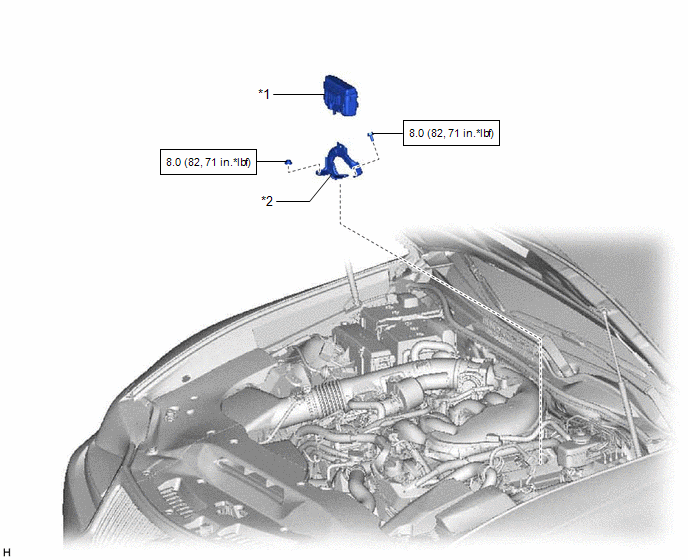

Fig 1: Brake Actuator Replacement Components With Torque Specifications [09/2014 - 11/2017] (1 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 3 ENGINE ROOM RELAY BLOCK ASSEMBLY | *2 | WIRING HARNESS CLAMP BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

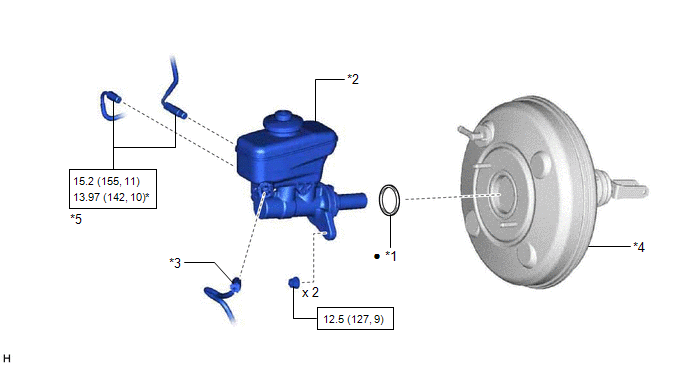

Fig 2: Brake Actuator Replacement Components With Torque Specifications [09/2014 - 11/2017] (2 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE MASTER CYLINDER O-RING | *2 | BRAKE MASTER CYLINDER SUB-ASSEMBLY |
| *3 | CONNECTOR | *4 | BRAKE BOOSTER ASSEMBLY |
| *5 | BRAKE LINE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with a union nut wrench | |
| • | Non-reusable part | - | - |

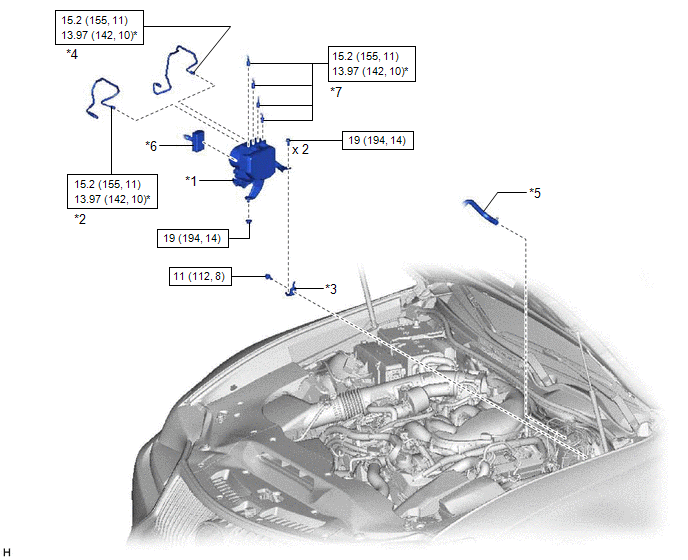

Fig 3: Brake Actuator Replacement Components With Torque Specifications [09/2014 - 11/2017] (3 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE ACTUATOR WITH BRACKET | *2 | FRONT NO. 1 BRAKE TUBE |
| *3 | NO. 5 BRAKE ACTUATOR BRACKET | *4 | REAR NO. 1 BRAKE TUBE |
| *5 | UNION TO CHECK VALVE HOSE | *6 | CONNECTOR |
| *7 | BRAKE LINE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with a union nut wrench |

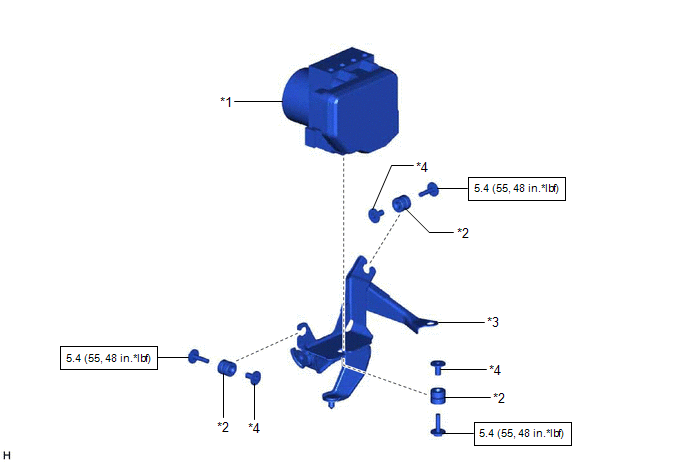

Fig 4: Brake Actuator Replacement Components With Torque Specifications [09/2014 - 11/2017] (4 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE ACTUATOR ASSEMBLY | *2 | BRAKE ACTUATOR BOLT CUSHION |
| *3 | BRAKE ACTUATOR BRACKET ASSEMBLY | *4 | BRAKE ACTUATOR CASE COLLAR |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
