Components [09/2014 - 11/2017]

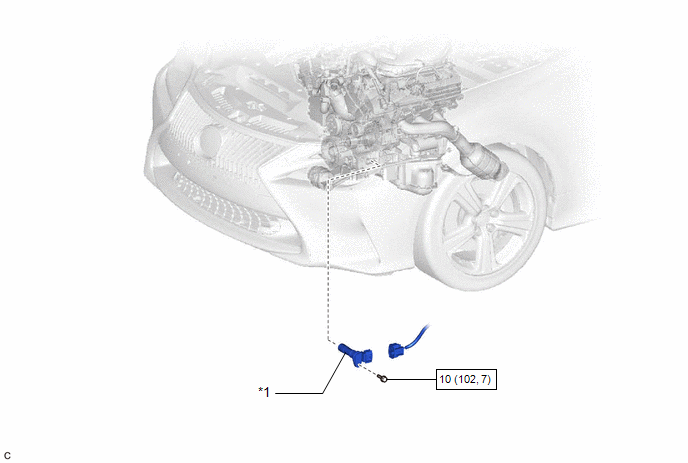

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications [09/2014 - 11/2017]
GTY507693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT POSITION SENSOR - -
N.m (kgf/cm, ft.lbf): Specified torque - -
