Components [09/2014 - 10/2015]

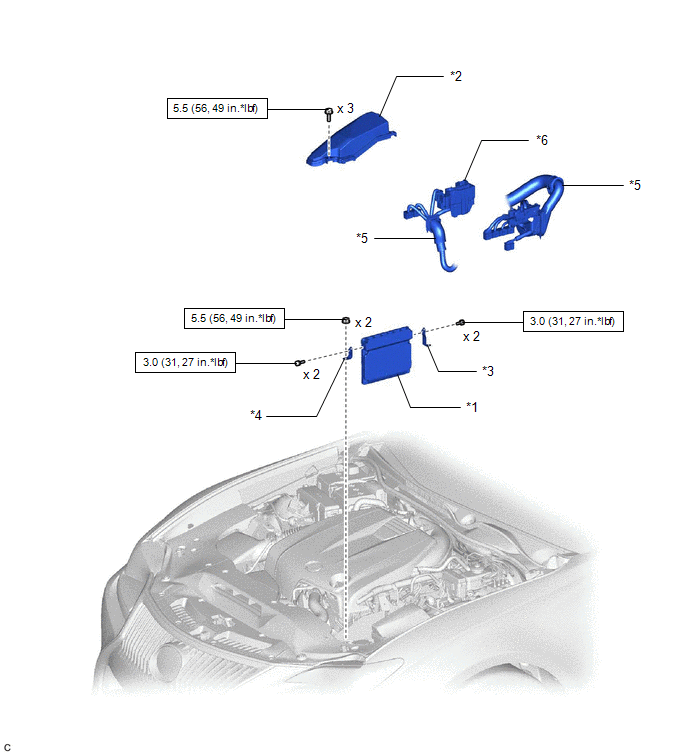

Fig 1: ECM Replacement Components With Torque Specifications [09/2014 - 10/2015]
GTY518797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ECM *2 ENGINE ROOM ECU COVER
*3 NO. 1 ECM BRACKET *4 NO. 2 ECM BRACKET
*5 WIRE HARNESS *6 CONNECTOR HOLDER
N.m (kgf/cm, ft.lbf): Specified torque - -
