Removal [10/2015 - 11/2017]: Procedure

Refer to PROCEDURE - Step 4

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 5

HINT:

Only perform this procedure when replacement of the intake air sound creator is necessary.

1. Loosen the hose clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the bolt and intake air sound creator from the air cleaner hose assembly.

Refer to PROCEDURE - Step 1

1. Slide the clip and disconnect the No. 2 ventilation hose from the cylinder head cover sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/ Intake Air Sound Creator
   *B	w/o Intake Air Sound Creator

1. Disconnect the mass air flow meter sub-assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the wire harness clamp.
3. Disengage the No. 2 fuel vapor feed hose clamp from the air cleaner hose assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Disengage the 4 air cleaner cap clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/ Intake Air Sound Creator
   *B	w/o Intake Air Sound Creator

5. Loosen the hose clamp and remove the air cleaner cap with air cleaner hose from the throttle body with motor assembly.

1. Disconnect the throttle body with motor assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 4 bolts and throttle body with motor assembly from the intake air surge tank assembly.
   NOTE:

   If the throttle body with motor assembly has been struck or dropped, replace it.

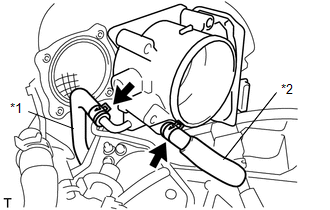

3. Slide the 2 clips and disconnect the No. 1 water by-pass hose and No. 2 water by-pass hose from the throttle body with motor assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Water By-pass Hose
   *2	No. 2 Water By-pass Hose

1. Remove the throttle body gasket from the intake air surge tank assembly.
