Components [09/2014 - ]

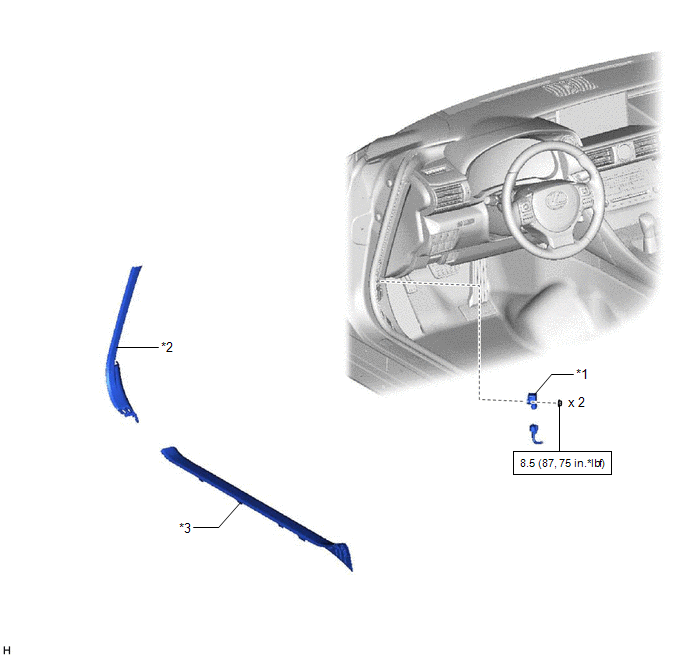

Fig 1: Front Acceleration Sensor Replacement Components With Torque Specifications
GTY517409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ACCELERATION SENSOR *2 FRONT DOOR OPENING TRIM COVER LH
*3 FRONT DOOR SCUFF PLATE LH - -
N.m (kgf/cm, ft.lbf): Specified torque - -
