Removal [08/2014 - ]: Procedure

PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal, Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work (See article. Refer to PRECAUTION [08/2014 - ] ).
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
(See article. Refer to REMOVAL [08/2014 - ] )
REMOVE FRONT WHEEL
REMOVE FRONT FENDER LINER
HINT:

Use the same procedure for the LH side and RH side (See article. Refer to PROCEDURE - Step 2 ).

REMOVE FRONT SPEED SENSOR

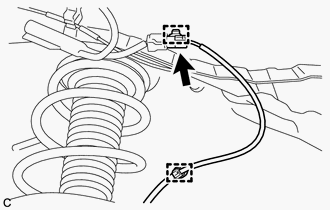

Remove the 2 clamps and disconnect the front speed sensor connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

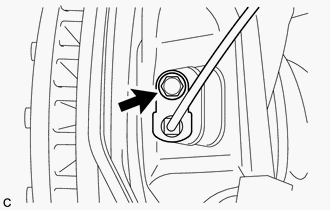

Remove the bolt and No. 2 sensor clamp from the body.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	No. 2 Sensor Clamp

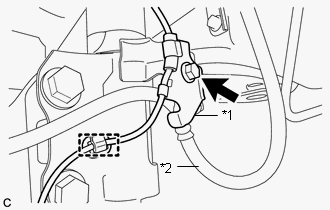

Remove the bolt, No. 1 sensor clamp and front flexible hose together from the shock absorber assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	No. 1 Sensor Clamp
*2	Front Flexible Hose

Remove the bolt and front speed sensor.

NOTE:

Prevent foreign matter from attaching to the front speed sensor tip.
Clean the speed sensor installation hole and the contact surfaces every time the front speed sensor is removed.
