Installation [08/2014 - ]: Procedure

  1. INSTALL NO. 1 INTEGRATION RELAY
    1. Connect the 3 connectors.

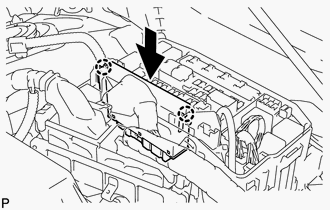

    2. Engage the 2 claws to install the No. 1 integration relay as shown in the illustration.
      GTY254179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 RELAY BLOCK COVER

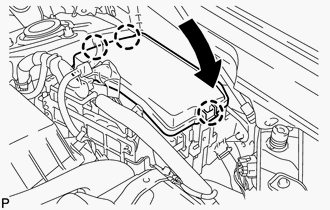

    1. Engage the 3 claws to install the No. 1 relay block cover as shown in the illustration.
      GTY254174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  4. INSTALL REAR FLOOR BOARD UPPER NO. 3 PLATE

    Refer to PROCEDURE - Step 69

  5. INSTALL DECK FLOOR BOX RH

    Refer to PROCEDURE - Step 70

  6. INSTALL REAR NO. 3 FLOOR BOARD

    Refer to PROCEDURE - Step 71

  7. INSTALL REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 72

  8. INSTALL REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 73
