Components Location [08/2014 - ]: Illustration

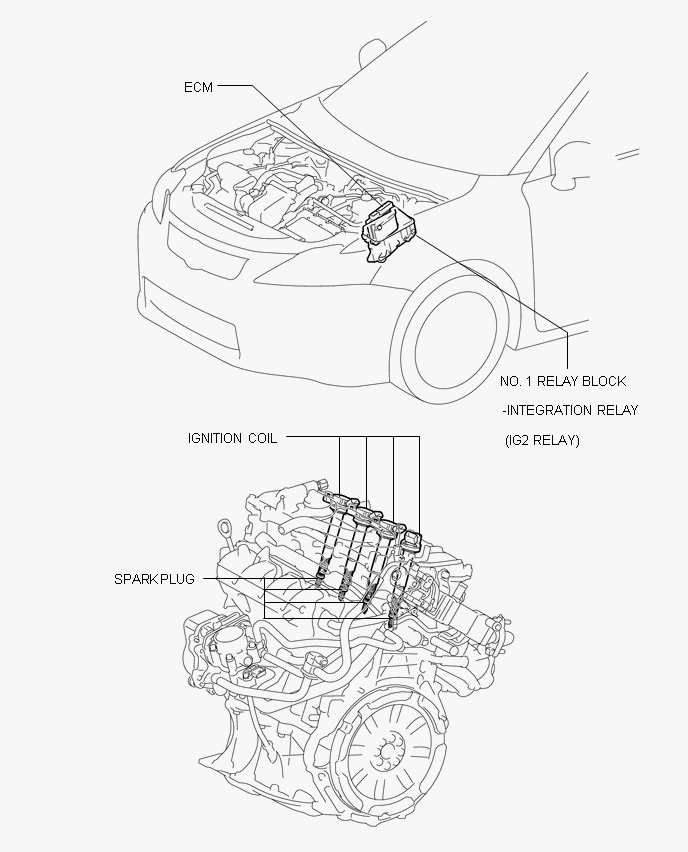

Fig 1: Identifying Ignition System Components Location (1 Of 2)
GTY357687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

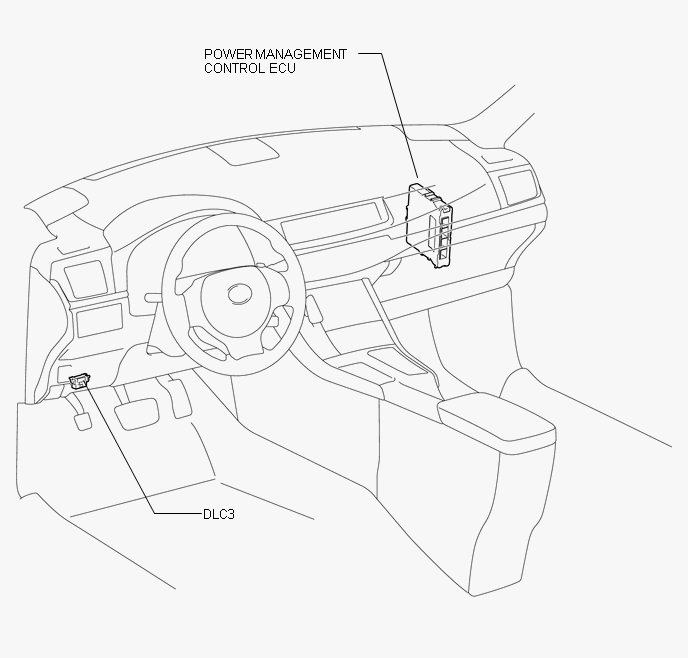

Fig 1: Identifying Ignition System Components Location (2 Of 2)
GTY351305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
