Removal [08/2014 - ]: Procedure

  1. REMOVE NO. 2 CYLINDER HEAD COVER

    Refer to PROCEDURE - Step 20

  2. REMOVE NO. 1 CRANK POSITION SENSOR

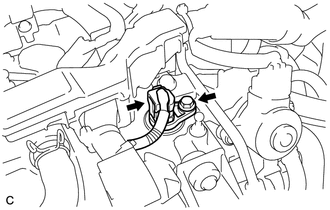

    1. Disconnect the No. 1 crank position sensor connector.
      GTY534257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and No. 1 crank position sensor.
