Removal [08/2014 - ]: Procedure

PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notice before proceeding with work (See article. Refer to PRECAUTION [08/2014 - ] ).
REMOVE REAR NO. 2 FLOOR BOARD
Refer to PROCEDURE - Step 1
REMOVE REAR DECK FLOOR BOX
Refer to PROCEDURE - Step 2
REMOVE REAR NO. 3 FLOOR BOARD
Refer to PROCEDURE - Step 3
REMOVE DECK FLOOR BOX RH
Refer to PROCEDURE - Step 4
REMOVE REAR FLOOR BOARD UPPER NO. 3 PLATE
Refer to PROCEDURE - Step 5
DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See article. Refer to INITIALIZATION [08/2014 - 08/2015] Refer to INITIALIZATION [08/2015 - ] ).
REMOVE INVERTER WITH CONVERTER ASSEMBLY
(See article. Refer to REMOVAL [08/2014 - ] )

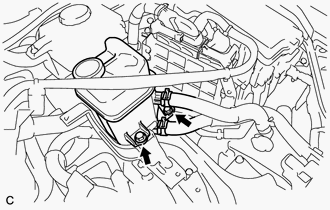

SEPARATE INVERTER RESERVE TANK ASSEMBLY

Remove the 2 bolts and separate the inverter reserve tank assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE ECM

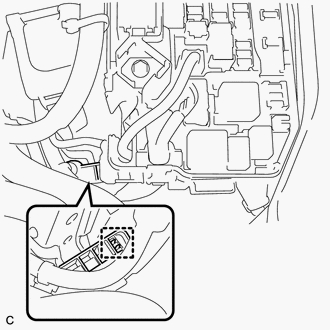

Separate the wire harness clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

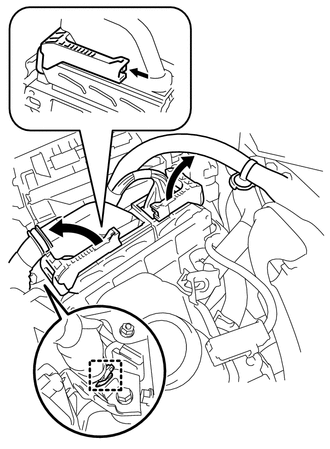

Disconnect the 2 ECM connectors.

Disconnect the wire harness clamp.

Push the locks on the 2 levers, then raise the levers, and disconnect the 2 ECM connectors.
NOTE:
After disconnecting the connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the connectors.

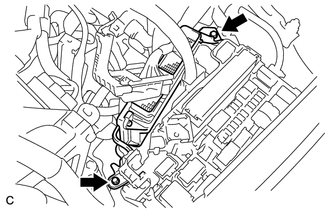

Remove the 2 bolts and ECM.
