Installation [08/2014 - ]: Procedure

  1. INSTALL NO. 2 INTEGRATION RELAY
    1. Connect the 3 connectors.
    2. Attach the No. 2 integration relay to the engine room relay block.

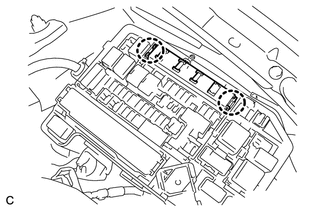

      GTY220814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
