Installation [08/2014 - ]: Procedure

  1. INSTALL PRE-COLLISION BRAKE CANCEL SWITCH ASSEMBLY

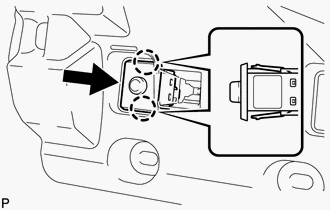

    1. Engage the 2 claws to install the pre-collision brake cancel switch assembly.
      GTY357071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 28
