Installation [07/2015 - ]: Procedure

1. Install the front speed sensor to the steering knuckle with the bolt.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   • Prevent foreign matter from attaching to the front speed sensor tip.
   • Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
   • After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.

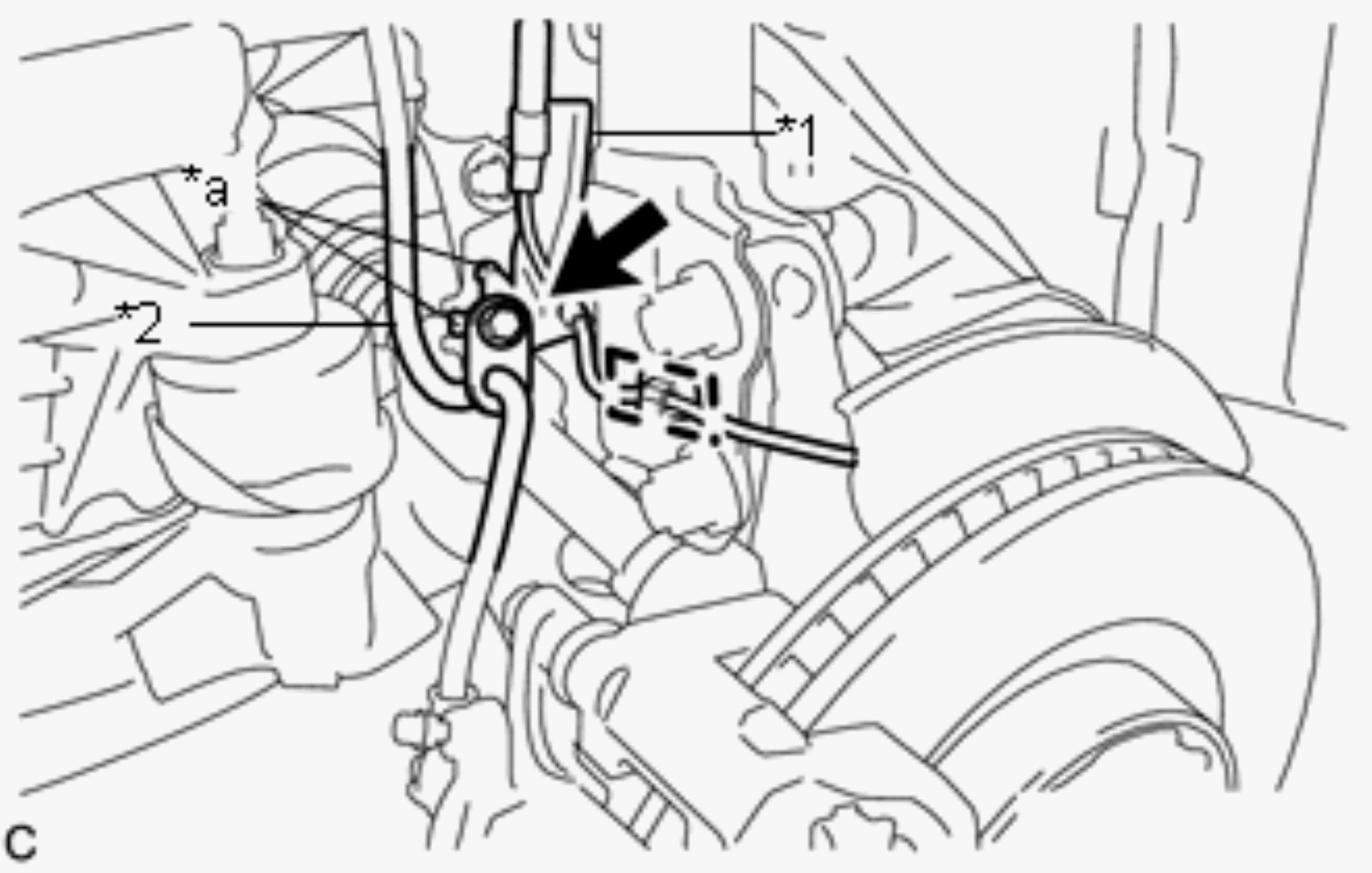

2. Install the front speed sensor clamp and front flexible hose to the front shock absorber assembly with the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Front Speed Sensor Clamp
   *2	Front Flexible Hose
   *a	Claw

   Torque: 19 N*m (192 kgf*cm, 14 ft.*lbf)

   NOTE:

   • Do not twist the wire harness for the front speed sensor when installing it.
   • Securely set the 2 claws of the front speed sensor clamp to the shock absorber bracket.
   • A bolt tightens the front flexible hose and front speed sensor together. Make sure that the front flexible hose is positioned over the front speed sensor.
3. Engage the clamp to the front shock absorber assembly.

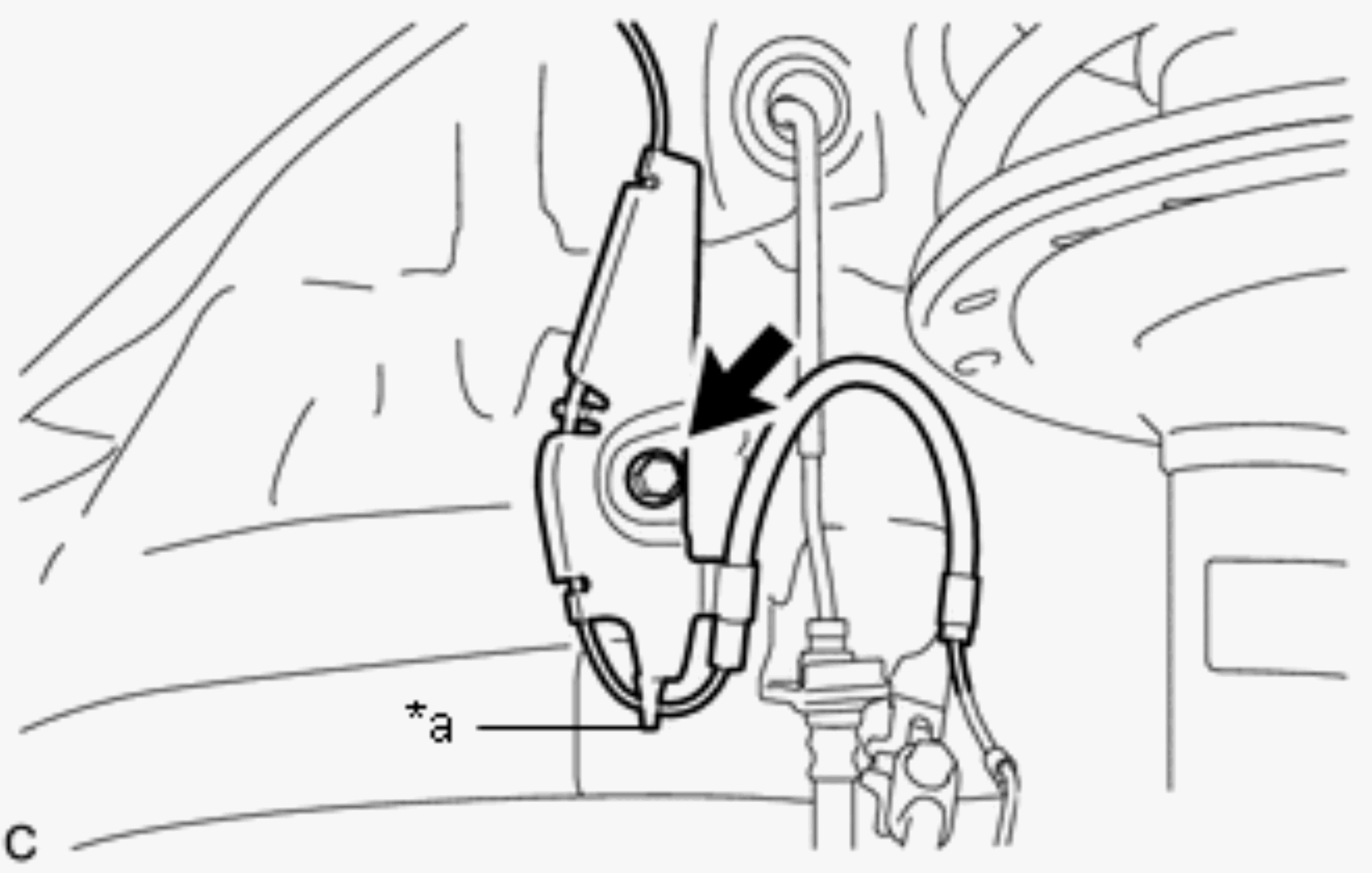

4. Install the front speed sensor clamp to the body with the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a

   Claw

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   • Do not twist the wire harness for the front speed sensor when installing it.
   • Securely set the claw of the front speed sensor clamp to the body.
5. Engage the clamp and connect the connector.

HINT:

Use the same procedure for the LH side and RH side (Refer to PROCEDURE - Step 3 ).

Refer to PROCEDURE - Step 2

Refer to TEST MODE PROCEDURE [07/2015 - ]
