Installation [07/2015 - ]: Procedure
- INSTALL NO. 1 ECM BRACKET
- Install the No. 1 ECM bracket with the nut.
Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
- Connect the wire harness clamp.
- Install the wire harness and 2 clamps.
- Install the nut.
- Install the No. 1 ECM bracket with the nut.
- INSTALL NO. 1 RELAY BLOCK COVER
- INSTALL ECM
- Install the No. 2 ECM bracket to the ECM with the 2 screws.
Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)

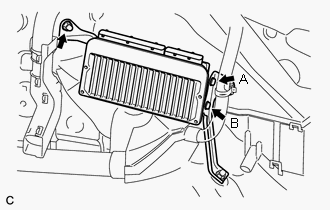

- Temporarily install the screw (B).
- Install the ECM with the nut.
Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
- Install the screw (A).
Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
- Tighten the screw (B).
Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
- Connect the 2 ECM connectors and lower the 2 levers.NOTE:
- When connecting the connectors, make sure that dirt, water or other foreign matter is not stuck between the connectors and connecting part of the ECM.
- Make sure that the 2 levers are securely locked.
- Install the No. 2 ECM bracket to the ECM with the 2 screws.
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [07/2015 - ] ).
- INSTALL LUGGAGE TRIM SERVICE HOLE COVER
Refer to PROCEDURE - Step 3
- PERFORM INITIALIZATION
Refer to INITIALIZATION [07/2015 - ]
