Inspection [07/2015 - ]: Procedure
- INSPECT NO. 1 INTEGRATION RELAY TEXT IN ILLUSTRATION

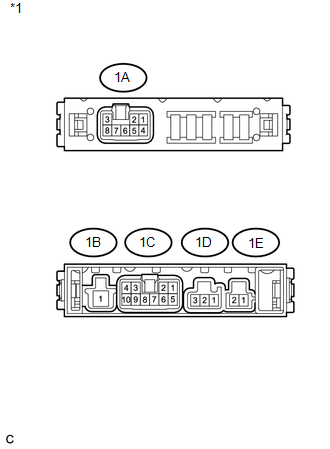

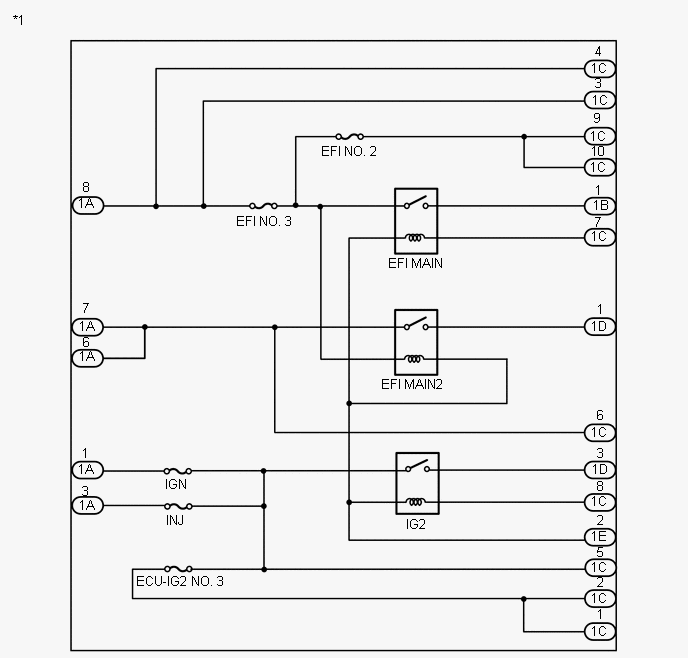

*1 No. 1 Integration Relay - - - EFI MAIN Relay:
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
*1 No. 1 Integration Relay Standard Resistance
Tester Connection Condition Specified Condition 1A-8 - 1B-1 Auxiliary battery voltage not applied between terminals 1C-7 and 1E-2 10 kΩ or higher 1A-8 - 1B-1 Auxiliary battery voltage applied between terminals 1C-7 and 1E-2 Below 1 Ω 1C-4 - 1B-1 1C-9 - 1B-1 1C-10 - 1B-1 If the result is not as specified, replace the No. 1 integration relay
- Measure the resistance according to the value(s) in the table below.
- EFI MAIN2 Relay:
- Measure the resistance according to the value(s) in the table below..TEXT IN ILLUSTRATION
*1 No. 1 Integration Relay Standard Resistance
Tester Connection Condition Specified Condition 1A-6 - 1D-1 Auxiliary battery voltage not applied between terminals 1A-8 and 1E-2 10 kΩ or higher 1A-6 - 1D-1 Auxiliary battery voltage applied between terminals 1A-8 and 1E-2 Below 1 Ω 1A-7 - 1D-1 1C-6 - 1D-1 If the result is not as specified, replace the No. 1 integration relay.
- Measure the resistance according to the value(s) in the table below..
- IG2 Relay:
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
*1 No. 1 Integration Relay Standard Resistance
Tester Connection Condition Specified Condition 1A-1 - 1D-3 Auxiliary battery voltage not applied between terminals 1A-8 and 1E-2 10 kΩ or higher 1A-1 - 1D-3 Auxiliary battery voltage applied between 1A-7 - 1D-1 terminals 1A-8 and 1E-2 Below 1 Ω 1A-3 - 1D-3 1C-1 - 1D-3 1C-2 - 1D-3 1C-5 - 1D-3 If the result is not as specified, replace the No. 1 integration relay.
- Measure the resistance according to the value(s) in the table below.
- EFI MAIN Relay:
