Components [08/2016 - ]: Illustration

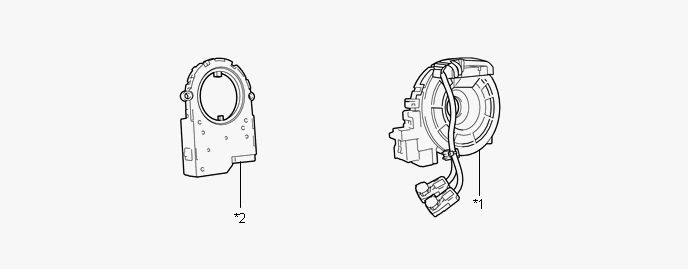

Fig 1: Steering Angle Sensor Replacement Components (2 Of 2)
GTY626793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 SPIRAL CABLE SUB-ASSEMBLY *2 STEERING SENSOR
