Installation [07/2015 - ]: Procedure

1. Install the front engine mounting insulator assembly with the 3 nuts.

   Torque: 58 N*m (591 kgf*cm, 43 ft.*lbf)

2. Install the hole plug.
3. Connect the duty vacuum switching valve connector and 2 clamps.

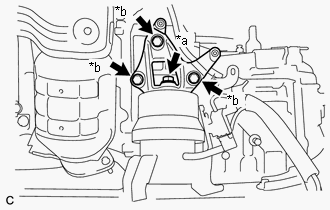

1. Install the transverse engine mounting bracket with the 4 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Bolt A
   *b	Bolt B

   Bolt A

   Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

   Bolt B

   Torque: 64 N*m (652 kgf*cm, 47 ft.*lbf)

2. Install the transmission oil cooler with the 2 bolts.

   Torque: 14 N*m (138 kgf*cm, 10 ft.*lbf)

Refer to INSTALLATION [07/2015 - ]
