Removal [07/2015 - ]: Procedure

  1. REMOVE RADIATOR ASSEMBLY

    Refer to REMOVAL [07/2015 - ]

  2. REMOVE TRANSVERSE ENGINE MOUNTING BRACKET

    HINT:

    Securely support the automatic transaxle using a jack.

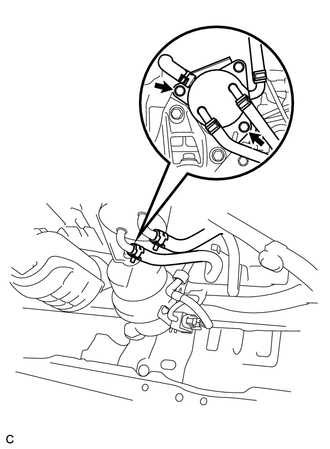

    1. Remove the 2 bolts and separate the transmission oil cooler.
      GTY319079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

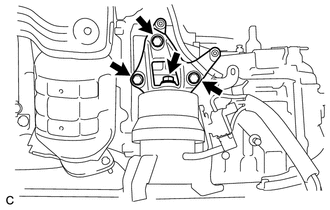

    2. Remove the 4 bolts and transverse engine mounting bracket.
      GTY322835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT ENGINE MOUNTING INSULATOR ASSEMBLY

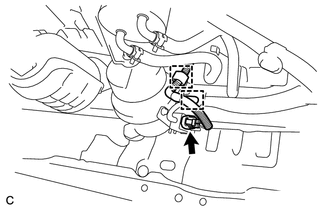

    1. Disconnect the duty vacuum switching valve connector and 2 clamps.
      GTY319077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the hole plug.

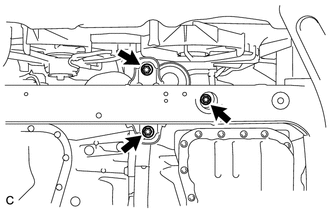

    3. Remove the 3 nuts and front engine mounting insulator assembly.
      GTY319075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
