Removal [07/2015 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [07/2015 - ] ).

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  3. REMOVE BATTERY

    Refer to PROCEDURE - Step 25

  4. REMOVE ECM

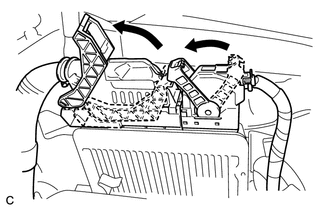

    1. Disconnect the 2 ECM connectors.
      GTY365031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Push in the locks on the 2 levers, raise the levers, and disconnect the 2 ECM connectors.
        NOTE:

        After disconnecting the connectors, make sure that dirt, water or other foreign matter does not contact the connecting part of the connectors.

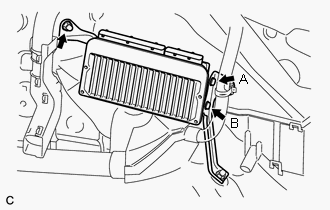

    2. Remove the nut.
      GTY670551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the screw (A).
    4. Loosen the screw (B) and remove the ECM.
    5. Remove the screw (B).

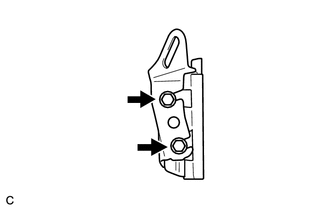

    6. Remove the 2 screws and No. 2 ECM bracket.
      GTY365012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 ECM BRACKET

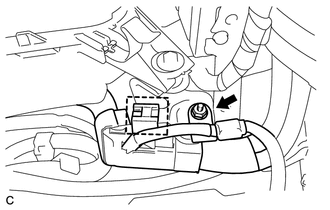

    1. Remove the nut.
      GTY365028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the wire harness clamp.

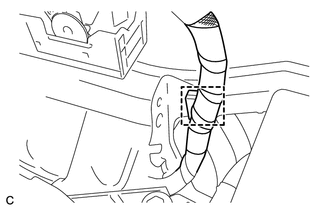

    3. Disconnect the wire harness clamp.
      GTY316086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

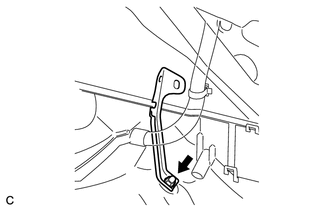

    4. Remove the nut and No. 1 ECM bracket.
      GTY320664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
