Inspection [07/2015 - ]: Procedure

  1. INSPECT KNOCK CONTROL SENSOR
    1. Measure the resistance according to the value(s) in the table below.

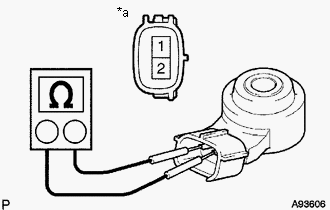

      GTY670559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 120 to 280 kΩ
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Knock Control Sensor)

      If the result is not as specified, replace the knock control sensor.
