Installation [07/2015 - ]: Procedure

INSTALL OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD)

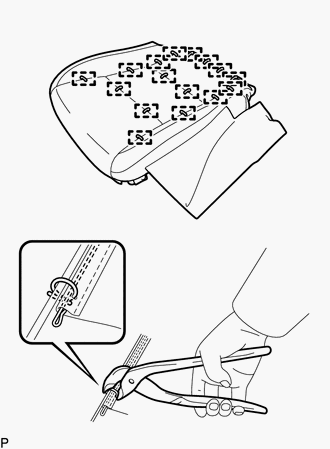

Using hog ring pliers, install the occupant detection sensor (separate type front seat cushion pad) to the separate type front seat cushion cover with 16 new hog rings.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Be careful not to damage the cover.
When installing the hog rings, avoid wrinkling the cover.

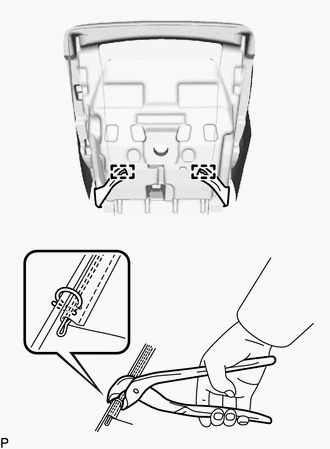

Using hog ring pliers, install 2 new hog rings.

NOTE:

Be careful not to damage the cover.

INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD
HINT:

Use the same procedures described for the LH side (Refer to PROCEDURE - Step 27 ).
INSTALL FRONT SEAT CUSHION SHIELD
HINT:

Use the same procedures described for the LH side (Refer to PROCEDURE - Step 30 ).
INSTALL RECLINING POWER SEAT SWITCH KNOB
HINT:

Use the same procedures described for the LH side (Refer to PROCEDURE - Step 35 ).
INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
HINT:

Use the same procedures described for the LH side (Refer to PROCEDURE - Step 36 ).
INSTALL FRONT POWER ADJUSTER SHIELD
HINT:

Use the same procedures described for the LH side (Refer to PROCEDURE - Step 37 ).
INSTALL FRONT INNER NO. 1 SEAT CUSHION SHIELD
HINT:

Use the same procedures described for the LH side (Refer to PROCEDURE - Step 38 ).
INSTALL FRONT SEAT INNER BELT ASSEMBLY
HINT:

Use the same procedures described for the LH side (See step 3).
INSTALL FRONT SEAT INNER CUSHION SHIELD
HINT:

Use the same procedures described for the LH side (Refer to PROCEDURE - Step 43 ).
CONNECT FRONT SEATBACK BOARD SUB-ASSEMBLY (w/o Foot Light)
HINT:

Use the same procedures described for the LH side (Refer to PROCEDURE - Step 45 ).
CONNECT FRONT SEATBACK BOARD SUB-ASSEMBLY (w/ Foot light)
HINT:

Use the same procedures described for the LH side (Refer to PROCEDURE - Step 46 ).
INSTALL FRONT SEAT ASSEMBLY
HINT:

Use the same procedures described for the LH side (Refer to INSTALLATION [07/2015 - ] ).
