Removal [09/2014 - ]: Procedure

(Refer to REMOVAL [09/2014 - 10/2015] or refer to REMOVAL [10/2015 - ] )

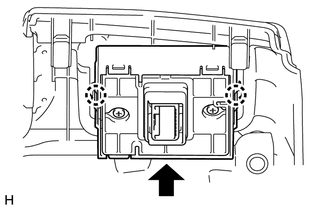

1. Using a screwdriver, detach the 2 claws and remove the integration control and panel assembly (VSC OFF switch) from the No. 1 instrument panel safety pad sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Tape the screwdriver tip before use.
