Removal [10/2015 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [10/2015 - ]

  2. REMOVE KNOCK SENSOR

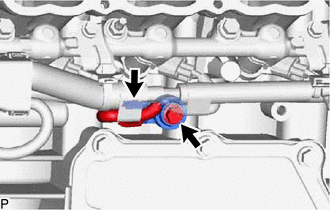

    1. Disconnect the knock sensor connector.
      GTY506725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and knock sensor.
