Removal [10/2015 - ]: Procedure

  1. REMOVE FUEL DELIVERY PIPE

    Refer to REMOVAL [10/2015 - ]

  2. REMOVE KNOCK SENSOR

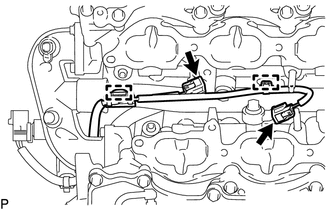

    1. Detach the 2 wire harness clamps and disconnect the 2 connectors from the 2 knock sensors.
      GTY589684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

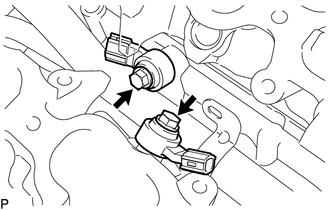

    2. Remove the 2 bolts and 2 knock sensors.
      GTY589683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
