Installation [09/2014 - ]: Procedure

INSTALL FRONT AXLE HUB SUB-ASSEMBLY (SKID CONTROL SENSOR)
(See article. Refer to INSTALLATION [09/2014 - ] )
INSPECT FRONT AXLE HUB BEARING LOOSENESS
Refer to PROCEDURE - Step 5
INSTALL FRONT AXLE HUB RUNOUT
Refer to PROCEDURE - Step 6
INSTALL FRONT DISC
1. for 17 inch Front Disc Brake:
  (See article. Refer to PROCEDURE - Step 1 )
2. for 18 inch Front Disc Brake:
  (See article. Refer to PROCEDURE - Step 1 )
INSTALL DISC BRAKE CYLINDER ASSEMBLY LH
1. for 17 inch Front Disc Brake:
  (See article. Refer to PROCEDURE - Step 2 )
2. for 18 inch Front Disc Brake:
  (See article. Refer to PROCEDURE - Step 2 )

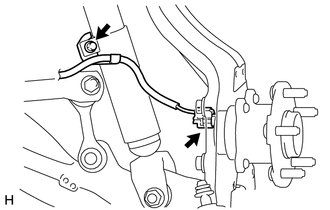

INSTALL SKID CONTROL SENSOR WIRE

Connect the connector.
NOTE:
Securely connect the connector.
Install the 2 harness clamps with the 2 bolts.
Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)
NOTE:
- Make sure the clamp rotation stopper touches the installation position.
- When installing the clamps, do not twist the wire harness.
Attach the clip.
Install the front fender liner.

Install the harness clamp with the bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

NOTE:

When installing the clamps, do not twist the wire harness.

INSTALL FRONT WHEEL
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
(See article. Refer to ADJUSTMENT [09/2014 - 10/2015] Refer to ADJUSTMENT [10/2015 - ] )
INSPECT SPEED SENSOR SIGNAL
(See article. Refer to TEST MODE PROCEDURE [09/2014 - 10/2015] Refer to TEST MODE PROCEDURE [10/2015 - ] )
