Installation [09/2014 - ]: Procedure

INSTALL INJECTOR DRIVER

NOTE:

Be careful not to drop or strike the injector driver.
The injector driver is grounded at the bolt and nut. To make sure that it is grounded, clean all oil and foreign matter from the installation areas of the injector driver and engine before installing the injector driver.

Install the injector driver with the bolt and 2 nuts.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

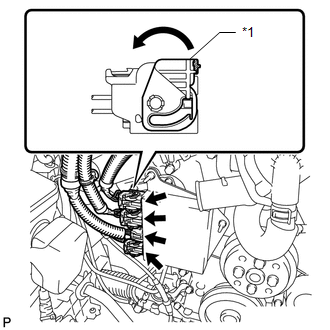

Connect the 4 connectors to the injector driver. Move the lock levers in the direction indicated by the arrow to lock the 3 connectors.

TEXT IN ILLUSTRATION

*1	Lock Lever

INSTALL NO. 1 ENGINE COVER
1. Install the No. 1 engine cover with the 3 clips.
INSTALL NO. 1 AIR CLEANER INLET
Refer to PROCEDURE - Step 75 or PROCEDURE - Step 75
INSTALL V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 116 Refer to PROCEDURE - Step 115
INSTALL COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 117 Refer to PROCEDURE - Step 116
INSTALL ENGINE ROOM SIDE COVER
Refer to PROCEDURE - Step 118 Refer to PROCEDURE - Step 117
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See article. Refer to INITIALIZATION [09/2014 - 10/2015] Refer to INITIALIZATION [10/2015 - ] ).
INSTALL LUGGAGE COMPARTMENT TRIM COVER LH
Refer to PROCEDURE - Step 24
INSTALL LUGGAGE COMPARTMENT FLOOR MAT
Refer to PROCEDURE - Step 26
