Installation [09/2014 - ]: Procedure

INSTALL ENGINE ROOM ECU BOX
INSTALL ENGINE ROOM ECU COVER
1. Install the engine room ECU cover and connect the 3 claws.
INSTALL NO. 2 ECM BRACKET
1. Install the No. 2 ECM bracket with the 2 bolts.
  Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)
INSTALL ECM BRACKET
1. Install the ECM bracket with the 2 bolts.
  Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)

INSTALL ECM

Install the ECM with the 2 nuts.
Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

NOTE:
Any parts that have scratches, dents, etc., or that are dropped or subjected to a strong impact during servicing need to be replaced with new one.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

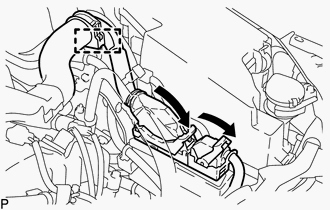

Connect the 2 ECM connectors and wire clamp.

NOTE:

When connecting the connectors, make sure that dirt, water or other foreign matter does not become stuck between the connectors and other parts.
Make sure that the 2 levers are securely locked.

INSTALL COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 117 Refer to PROCEDURE - Step 116
INSTALL ENGINE ROOM SIDE COVER
Refer to PROCEDURE - Step 118 Refer to PROCEDURE - Step 117
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See article. Refer to INITIALIZATION [09/2014 - 10/2015] Refer to INITIALIZATION [10/2015 - ] ).
INSTALL LUGGAGE COMPARTMENT TRIM COVER LH
Refer to PROCEDURE - Step 24
INSTALL LUGGAGE COMPARTMENT FLOOR MAT
Refer to PROCEDURE - Step 26
