Components [09/2014 - ]: Illustration

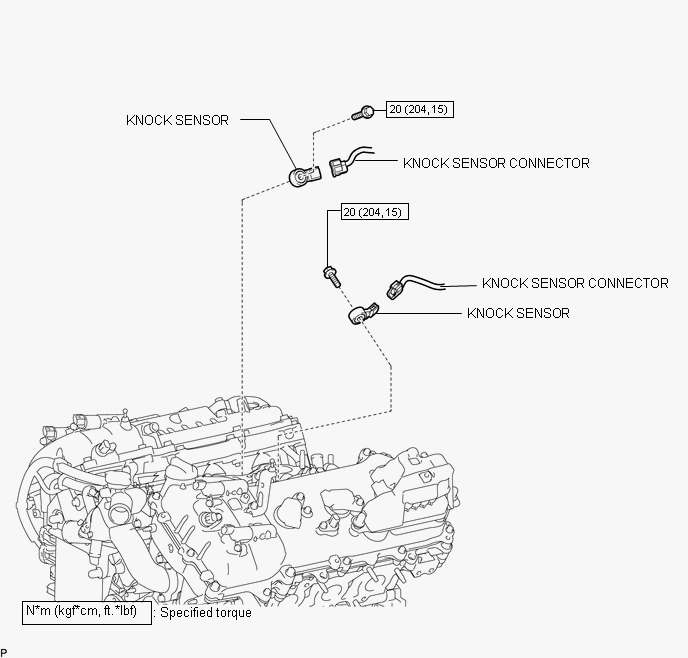

Fig 1: Knock Sensor Replacement Components With Torque Specifications
GTY528569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
