Removal [09/2014 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3 Refer to PROCEDURE - Step 3

  2. REMOVE MANIFOLD ABSOLUTE PRESSURE SENSOR

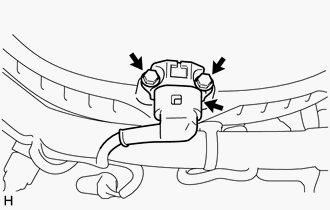

    GTY418060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector.
    2. Remove the 2 bolts and manifold absolute pressure sensor.
