Inspection [09/2014 - 10/2015]: Procedure

  1. INSPECT PRE-COLLISION SYSTEM CANCEL SWITCH ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

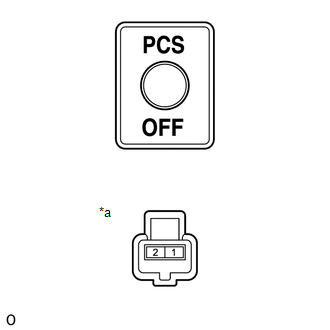

      GTY462664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      1 - 2 Pressed Below 1 Ω
      Not pressed 10 MΩ or higher

      If the result is not as specified, replace the pre-collision system cancel switch assembly.

      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Pre-collision System Cancel Switch Assembly)
