Inspection [09/2017 - ]: Procedure
- INSPECT SATELLITE SWITCH SET (BRAKE HOLD SWITCH)
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION

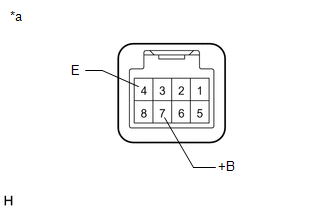

*a Component without harness connected
(Brake Hold Switch)Standard Resistance
Tester Connection Switch Condition Specified Condition 7 (+B) - 4 (E) Brake Hold Switch ON Below 2.5 Ω Brake Hold Switch OFF 1 MΩ or higher If the result is not as specified, replace the satellite switch set (Brake hold switch).
- Measure the resistance according to the value(s) in the table below.
