Removal [10/2015 - ]: Procedure

Refer to REMOVAL [10/2015 - ]

HINT:

Use the same procedure described for the LH side.

Refer to PROCEDURE - Step 1

1. Remove the 2 nuts and separate the rear wheel house liner.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

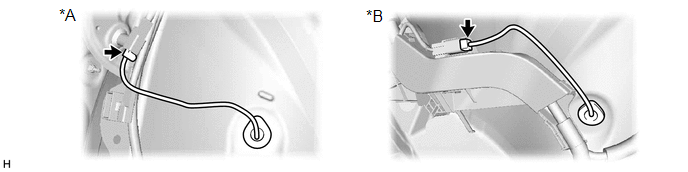

1. Turn back the luggage compartment trim cover until the rear speed sensor connector can be seen.
2. Disengage the rear speed sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A

   for LH Side

   *B

   for RH Side

3. Disconnect the pad wear indicator wire connector from the rear speed sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Pad Wear Indicator Wire
   *2	Rear Speed Sensor

4. Remove the 3 bolts and separate the rear speed sensor and 2 sensor clamps from the rear axle carrier sub-assembly and rear No. 2 upper control arm assembly.
   NOTE:

   • Prevent foreign matter from attaching to the rear speed sensor tip.
   • Clean the speed sensor installation hole and the contact surfaces every time the rear speed sensor is removed.
5. Turn back the rear wheel house liner until the grommet can be disengaged.
6. Remove the 2 nuts and 2 sensor clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

7. Disengage the grommet and remove the rear speed sensor.
