Installation [10/2015 - ]: Procedure
- INSTALL INJECTOR DRIVER NOTE:
- Be careful not to drop or strike the injector driver.
- The injector driver is grounded at the 4 bolts and 2 nuts. To ensure that it is grounded, clean the installation surfaces of the injector driver and engine before installing the injector driver.
- Temporarily install the 2 injector drivers with the 4 bolts and 2 nuts.
- Tighten the 4 bolts and 2 nuts.
Torque: 10 N*m (02 kgf*cm, 7 ft.*lbf)
- Connect the 2 injector driver connectors.

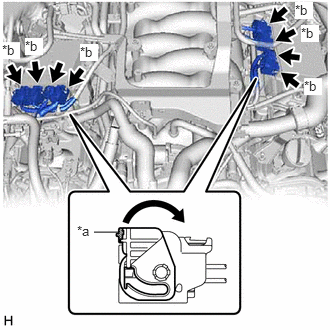

*a Lock Lever - Connect the 6 connectors (with lock) to the 2 injector drivers and move the lock lever to engage the lock of each connector (with lock) as shown in the illustration.NOTE:
Securely connect the connectors (with lock) to the injector driver and engage the lock.
- INSTALL V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 98 [10/2015 - 05/2018], or Refer to PROCEDURE - Step 99 [05/2018 - ]
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [10/2015 - 09/2016] , or Refer to INITIALIZATION [09/2016 - 09/2017] , or Refer to INITIALIZATION [09/2017 - ]
