Removal [10/2015 - ]: Procedure

  1. REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY
    NOTE:
    • Avoid physical shock to the accelerator pedal sensor assembly.
    • Do not disassemble the accelerator pedal sensor assembly.
    • The accelerator pedal sensor assembly does not require lubrication.
    • Do not apply oil or other lubricants to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.
    1. Disconnect the accelerator pedal sensor assembly connector.
      GTY615825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and accelerator pedal sensor assembly.
  2. REMOVE ACCELERATOR PEDAL PAD
    1. Disengage the 2 claws to remove the accelerator pedal pad.

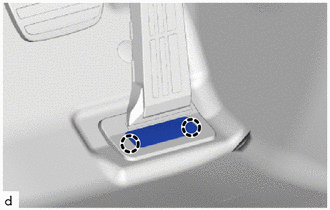

      GTY615820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE ACCELERATOR PEDAL
    1. Remove the 2 bolts and accelerator pedal.

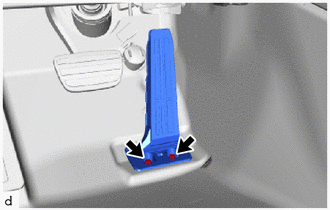

      GTY615822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
