Removal [09/2017 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [10/2015 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2017 - ]

  3. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 [09/2017 - 05/2018], or Refer to PROCEDURE - Step 2 [05/2018 - ]

  4. REMOVE CAMSHAFT POSITION SENSOR
    1. Disconnect the camshaft position sensor connector.
      GTY521509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.
      NOTE:

      If the camshaft position sensor has been struck or dropped, replace it.

  5. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
    1. Disconnect the VVT sensor connector.

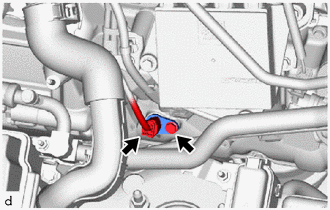

      GTY673225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly LH.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.

  6. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
    1. Disconnect the VVT sensor connector.

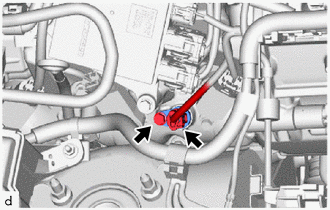

      GTY615846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.

  7. REMOVE BATTERY

    Refer to PROCEDURE - Step 3

  8. REMOVE VVT SENSOR (for Intake Side of Bank 2)
    1. Disconnect the VVT sensor connector.
      GTY521511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.

  9. REMOVE NO. 3 FUEL PIPE SUB-ASSEMBLY

    Refer to REMOVAL [09/2017 - 05/2018] , or Refer to REMOVAL [05/2018 - ]

  10. REMOVE VVT SENSOR (for Intake Side of Bank 1)
    1. Disconnect the VVT sensor connector.
      GTY515742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly LH.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.
