Installation [10/2015 - ]: Procedure
- INSTALL SPARK PLUG
Refer to PROCEDURE - Step 1
- INSTALL IGNITION COIL ASSEMBLY
HINT:
Perform "Inspection After Repair" after replacing an ignition coil assembly.
Refer to INITIALIZATION [10/2015 - ]
- Install the 8 ignition coil assemblies to the cylinder head cover sub-assembly and cylinder head cover sub-assembly LH with the 8 bolts.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
NOTE:If an ignition coil assembly has been struck or dropped, replace it.
HINT:
Install the same parts to their original positions.
- Connect the 8 ignition coil assembly connectors.
- Install the 8 ignition coil assemblies to the cylinder head cover sub-assembly and cylinder head cover sub-assembly LH with the 8 bolts.
- INSTALL SUCTION PIPE SUB-ASSEMBLY
- Install the suction pipe sub-assembly to the suction tube bracket with the bolt.
Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
- Install the suction pipe sub-assembly to the suction tube bracket with the bolt.
- INSTALL NO. 3 ENGINE ROOM RELAY BLOCK
- Install the wire harness clamp bracket with the bolt.
HINT:
The tightening torque differs depending on the type of bolt.

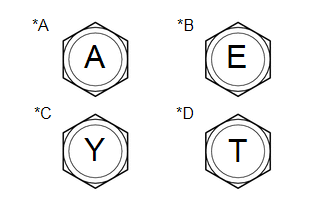

*A Bolt Type A *B Bolt Type B *C Bolt Type C *D Bolt Type D Bolt Type A
Torque: 10.5 N*m (107 kgf*cm, 8 ft.*lbf)
Bolt Type B
Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
Bolt Type C
Torque: 9.5 N*m (97 kgf*cm, 84 in.*lbf)
Bolt Type D
Torque: 9.5 N*m (97 kgf*cm, 84 in.*lbf)
- Install the No. 3 engine room relay block with the bolt and nut.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
- Install the wire harness clamp bracket with the bolt.
- INSTALL NO. 1 ENGINE ROOM RELAY BLOCK
- Install the wire harness clamp bracket with the bolt.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
- Engage the wire harness clamp.
- Install the No. 1 engine room relay block with the 2 bolts and nut.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
- Install the wire harness clamp bracket with the bolt.
- INSTALL BATTERY TRAY
- Install the battery tray with the 2 bolts.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
- Install the battery tray with the 2 bolts.
- INSTALL POWER STEERING ECU ASSEMBLY
Refer to INSTALLATION [10/2015 - ]
- INSTALL V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 98 [10/2015 - 05/2018], or Refer to PROCEDURE - Step 99 [05/2018 - ]
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [10/2015 - 09/2016] , or Refer to INITIALIZATION [09/2016 - 09/2017] , or Refer to INITIALIZATION [09/2017 - ]
- PERFORM INITIALIZATION
- Perform "Inspection After Repair" after replacing an ignition coil assembly and spark plug.
Refer to INITIALIZATION [10/2015 - ]
- Perform "Inspection After Repair" after replacing an ignition coil assembly and spark plug.
