Inspection [10/2015 - ]: Procedure
- INSPECT KNOCK SENSOR (for Bank 1)
- Measure the resistance according to the value(s) in the table below.

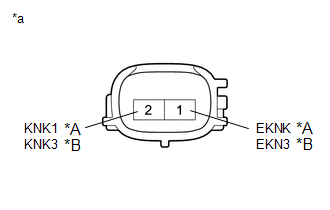

*A for Sensor 1 *B for Sensor 2 *a Component without harness connected
(Knock Sensor)Standard Resistance
Tester Connection Condition Specified Condition 1 (EKNK) - 2 (KNK1)
1 (EKN3) - 2 (KNK3)20°C (68°F) 120 to 280 kΩ If the result is not as specified, replace the knock sensor.
- Measure the resistance according to the value(s) in the table below.
- INSPECT KNOCK SENSOR (for Bank 2)
- Measure the resistance according to the value(s) in the table below.

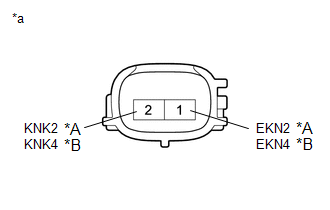

*A Sensor 1 *B Sensor 2 *a Component without harness connected
(Knock Sensor)Standard Resistance
Tester Connection Condition Specified Condition 1 (EKN2) - 2 (KNK2)
1 (EKN4) - 2 (KNK4)20°C (68°F) 120 to 280 kΩ If the result is not as specified, replace the knock sensor.
- Measure the resistance according to the value(s) in the table below.
